SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage

5000PCS
MOQ
Negotiable
Price
SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: TVS Diodes
Package Type: DO-214AC/SMA
Vrwm: 6.5V
Vbr@It (Min.): 7.22V
Vbr@It (Max.): 7.98V
It: 10mA
Vc@Ipp: 11.2V
Ipp: 35.71A
Ir@Vrwm: 500μA
Storage Temperature Range: -55 To +150 ℃
Highlight:

SMA Transient Voltage Suppressor TVS

,

Low Leakage Transient Voltage Suppressor TVS

,

SMA TVS
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMAJ6.5A
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SOCAY Transient Voltage Suppressor SMAJ6.5A, SMA Package, Excellent Clamping Capability​



DATASHEET:  SMAJ_v2207.1.pdf







Part Number Marking

Reverse

Stand-Off

Voltage VRWM(V)

Breakdown

Voltage VBR (V)

@IT

Test

Current

IT (mA)

Maximum

Clamping

Voltage VC @IPP (V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
SMAJ6.5A SMAJ6.5CA AK WK 6.5 7.22 7.98 10 11.2 35.71 500

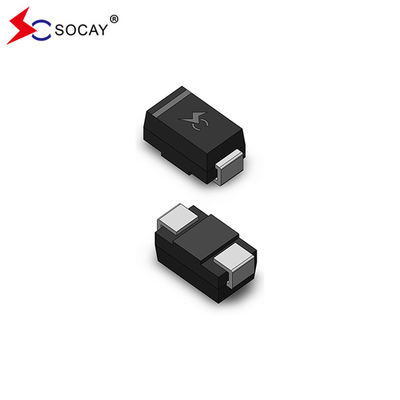

SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage 0

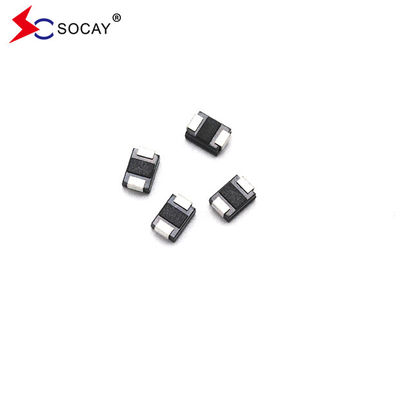

SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage 1







SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage 2

SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage 3

SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage 4

SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage 5

SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage 6

SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage 7

SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage 8

SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage 9

SMA Package Transient Voltage Suppressor TVS SMAJ6.5A Low Leakage 10
