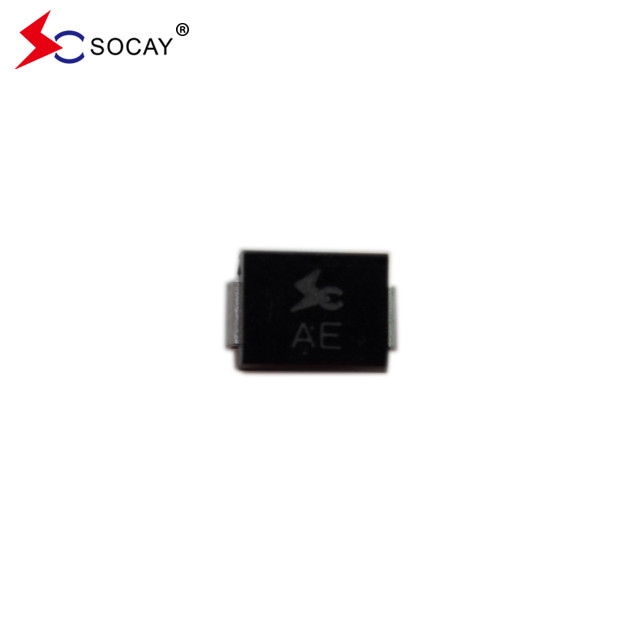

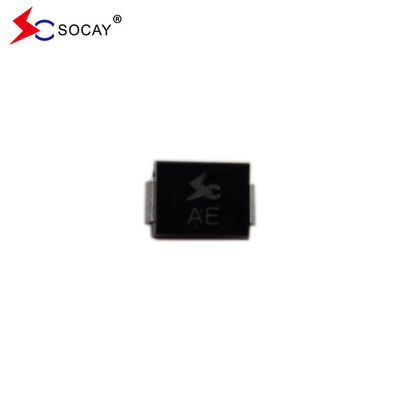

SOCAY NEW ORIGINAL SMBJ SERIES SMBJ6.5CA TVS Diodes Datasheet Circuit Protection

SOCAY NEW ORIGINAL SMBJ SERIES SMBJ6.5CA TVS Diodes Datasheet Circuit Protection

SMBJ SERIES SMBJ6.5CA DATASHEET:  SMBJ_v88.2.pdf

SMBJ SERIES SMBJ6.5CA Explanation:

The SMBJ SERIES SMBJ6.5CA is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

SMBJ SERIES SMBJ6.5CA Characteristic​:

u SMBJ SERIES SMBJ6.5CA is For surface mounted applications in order to optimize board space

u Low leakage

u SMBJ SERIES SMBJ6.5CA  is a Bidirectional unit

u Glass passivated junction

u SMBJ SERIES SMBJ6.5CA has Low inductance

u Excellent clamping capability

u 600W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01%

u Fast response time: typically less than 1.0ps from 0 Volts to V_BR min

u Typical I_R less than 5μA above 12V.

u SMBJ SERIES SMBJ6.5CA 's High Temperature soldering: 260°C/40 seconds at terminals

u Typical maximum temperature coefficient ΔV_BR = 0.1% × V_BR@25°C× ΔT

u Plastic package has Underwriters Laboratory Flammability 94V-0

u Matte tin lead–free Plated

u SMBJ SERIES SMBJ6.5CA 's Halogen free and RoHS compliant

u Typical failure mode is short from over-specified voltage or current

u Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

u IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)

u SMBJ SERIES SMBJ6.5CA 's ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)

u EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
