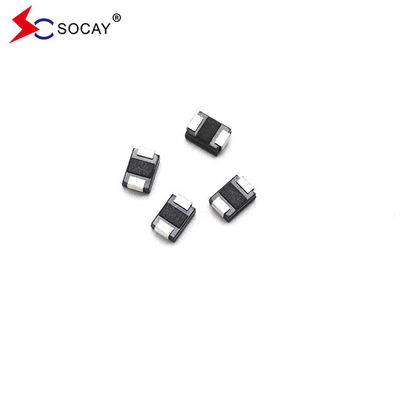

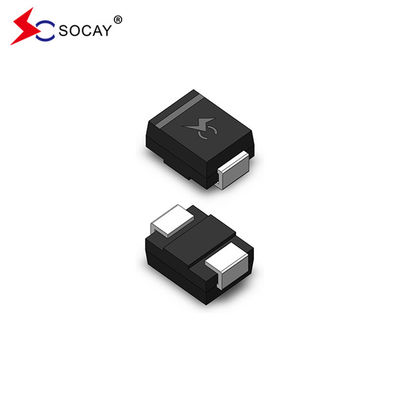

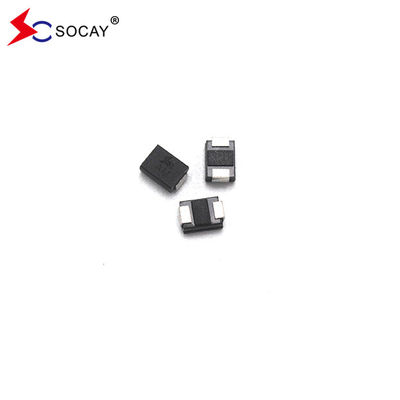

5V Surface Mount TVS Diodes SMBJ5.0A, 600W Uni-directional Transient Voltage Suppressor
DATASHEET: SMBJ_v88.2.pdf
Description:
The SMBJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
| Part Number |
Marking |
Reverse
Stand-Off
Voltage VRWM (V)
|
Breakdown
Voltage VBR (V)
@IT
|
Test
Current
IT (mA)
|
Maximum
Clamping
Voltage VC @IPP (V)
|
Maximum
Peak
Pulse
Current IPP (A)
|
Maximum
Reverse
Leakage IR
@VRWM (μA)
|
| Uni |
Bi |
Uni |
Bi |
|
MIN |
MAX |
|
|
|
|
| SMBJ3.3A |
— |
K1 |
— |
3.3 |
5.20 |
6.50 |
10 |
8.0 |
75.00 |
600 |
| SMBJ5.0A |
SMBJ5.0CA |
KE |
AE |
5.0 |
6.40 |
7.00 |
10 |
9.2 |
65.22 |
800 |
| SMBJ6.0A |
SMBJ6.0CA |
KG |
AG |
6.0 |
6.67 |
7.37 |
10 |
10.3 |
58.25 |
800 |
| SMBJ6.5A |
SMBJ6.5CA |
KK |
AK |
6.5 |
7.22 |
7.98 |
10 |
11.2 |
53.57 |
500 |
| SMBJ7.0A |
SMBJ7.0CA |
KM |
AM |
7.0 |
7.78 |
8.60 |
10 |
12.0 |
50.00 |
200 |
| SMBJ7.5A |
SMBJ7.5CA |
KP |
AP |
7.5 |
8.33 |
9.21 |
1 |
12.9 |
46.51 |
100 |
| SMBJ8.0A |
SMBJ8.0CA |
KR |
AR |
8.0 |
8.89 |
9.83 |
1 |
13.6 |
44.12 |
50 |
| SMBJ8.5A |
SMBJ8.5CA |
KT |
AT |
8.5 |
9.44 |
10.40 |
1 |
14.4 |
41.67 |
10 |
| SMBJ9.0A |
SMBJ9.0CA |
KV |
AV |
9.0 |
10.00 |
11.10 |
1 |
15.4 |
38.96 |
5 |
| SMBJ10A |
SMBJ10CA |
KX |
AX |
10.0 |
11.10 |
12.30 |
1 |
17.0 |
35.29 |
5 |
| SMBJ11A |
SMBJ11CA |
KZ |
WZ |
11.0 |
12.20 |
13.50 |
1 |
18.2 |
32.97 |
5 |
| SMBJ12A |
SMBJ12CA |
LE |
BE |
12.0 |
13.30 |
14.70 |
1 |
19.9 |
30.15 |
5 |
| SMBJ13A |
SMBJ13CA |
LG |
BG |
13.0 |
14.40 |
15.90 |
1 |
21.5 |
27.91 |
5 |
| SMBJ14A |
SMBJ14CA |
LK |
BK |
14.0 |
15.60 |
17.20 |
1 |
23.2 |
25.86 |
5 |
| SMBJ15A |
SMBJ15CA |
LM |
BM |
15.0 |
16.70 |
18.50 |
1 |
24.4 |
24.59 |
5 |
| SMBJ16A |
SMBJ16CA |
LP |
BP |
16.0 |
17.80 |
19.70 |
1 |
26.0 |
23.08 |
5 |
| SMBJ17A |
SMBJ17CA |
LR |
BR |
17.0 |
18.90 |
20.90 |
1 |
27.6 |
21.74 |
5 |
| SMBJ18A |
SMBJ18CA |
LT |
BT |
18.0 |
20.00 |
22.10 |
1 |
29.2 |
20.55 |
5 |
| SMBJ19A |
SMBJ19CA |
LB |
BB |
19.0 |
21.10 |
23.30 |
1 |
30.8 |
19.49 |
5 |
| SMBJ20A |
SMBJ20CA |
LV |
BV |
20.0 |
22.20 |
24.50 |
1 |
32.4 |
18.52 |
5 |
| SMBJ22A |
SMBJ22CA |
LX |
BX |
22.0 |
24.40 |
26.90 |
1 |
35.5 |
16.90 |
5 |
| SMBJ24A |
SMBJ24CA |
LZ |
BZ |
24.0 |
26.70 |
29.50 |
1 |
38.9 |
15.42 |
5 |
| SMBJ26A |
SMBJ26CA |
ME |
CE |
26.0 |
28.90 |
31.90 |
1 |
42.1 |
14.25 |
5 |
| SMBJ28A |
SMBJ28CA |
MG |
CG |
28.0 |
31.10 |
34.40 |
1 |
45.4 |
13.22 |
5 |
| SMBJ30A |
SMBJ30CA |
MK |
CK |
30.0 |
33.30 |
36.80 |
1 |
48.4 |
12.40 |
5 |
| SMBJ33A |
SMBJ33CA |
MM |
CM |
33.0 |
36.70 |
40.60 |
1 |
53.3 |
11.26 |
5 |
| SMBJ36A |
SMBJ36CA |
MP |
CP |
36.0 |
40.00 |
44.20 |
1 |
58.1 |
10.33 |
5 |
| SMBJ40A |
SMBJ40CA |
MR |
CR |
40.0 |
44.40 |
49.10 |
1 |
64.5 |
9.30 |
5 |
| SMBJ43A |
SMBJ43CA |
MT |
CT |
43.0 |
47.80 |
52.80 |
1 |
69.4 |
8.65 |
5 |
| SMBJ45A |
SMBJ45CA |
MV |
CV |
45.0 |
50.00 |
55.30 |
1 |
72.7 |
8.25 |
5 |
| SMBJ48A |
SMBJ48CA |
MX |
CX |
48.0 |
53.30 |
58.90 |
1 |
77.4 |
7.75 |
5 |
| SMBJ51A |
SMBJ51CA |
MZ |
CZ |
51.0 |
56.70 |
62.70 |
1 |
82.4 |
7.28 |
5 |
| SMBJ54A |
SMBJ54CA |
NE |
DE |
54.0 |
60.00 |
66.30 |
1 |
87.1 |
6.89 |
5 |
| SMBJ58A |
SMBJ58CA |
NG |
DG |
58.0 |
64.40 |
71.20 |
1 |
93.6 |
6.41 |
5 |
| SMBJ60A |
SMBJ60CA |
NK |
DK |
60.0 |
66.70 |
73.70 |
1 |
96.8 |
6.20 |
5 |
| SMBJ64A |
SMBJ64CA |
NM |
DM |
64.0 |
71.10 |
78.60 |
1 |
103.0 |
5.83 |
5 |
| SMBJ70A |
SMBJ70CA |
NP |
DP |
70.0 |
77.80 |
86.00 |
1 |
113.0 |
5.31 |
5 |
| SMBJ75A |
SMBJ75CA |
NR |
DR |
75.0 |
83.30 |
92.10 |
1 |
121.0 |
4.96 |
5 |
| SMBJ78A |
SMBJ78CA |
NT |
DT |
78.0 |
86.70 |
95.80 |
1 |
126.0 |
4.76 |
5 |
| SMBJ80A |
SMBJ80CA |
NB |
DB |
80.0 |
88.80 |
97.60 |
1 |
129.6 |
4.63 |
5 |
| SMBJ85A |
SMBJ85CA |
NV |
DV |
85.0 |
94.40 |
104.00 |
1 |
137.0 |
4.38 |
5 |
| SMBJ90A |
SMBJ90CA |
NX |
DX |
90.0 |
100.00 |
111.00 |
1 |
146.0 |
4.11 |
5 |
| SMBJ100A |
SMBJ100CA |
NZ |
DZ |
100.0 |
111.00 |
123.00 |
1 |
162.0 |
3.70 |
5 |
| SMBJ110A |
SMBJ110CA |
PE |
EE |
110.0 |
122.00 |
135.00 |
1 |
177.0 |
3.39 |
5 |
| SMBJ120A |
SMBJ120CA |
PG |
EG |
120.0 |
133.00 |
147.00 |
1 |
193.0 |
3.11 |
5 |
| SMBJ130A |
SMBJ130CA |
PK |
EK |
130.0 |
144.00 |
159.00 |
1 |
209.0 |
2.87 |
5 |
| SMBJ140A |
SMBJ140CA |
PB |
EB |
140.0 |
155.00 |
171.00 |
1 |
226.8 |
2.65 |
5 |
| SMBJ150A |
SMBJ150CA |
PM |
EM |
150.0 |
167.00 |
185.00 |
1 |
243.0 |
2.47 |
5 |
| SMBJ160A |
SMBJ160CA |
PP |
EP |
160.0 |
178.00 |
197.00 |
1 |
259.0 |
2.32 |
5 |
| SMBJ170A |
SMBJ170CA |
PR |
ER |
170.0 |
189.00 |
209.00 |
1 |
275.0 |
2.18 |
5 |
| SMBJ180A |
SMBJ180CA |
PT |
ET |
180.0 |
201.00 |
220.00 |
1 |
291.6 |
2.06 |
5 |
| SMBJ190A |
SMBJ190CA |
PV |
EV |
190.0 |
211.00 |
232.00 |
1 |
307.8 |
1.95 |
5 |
| SMBJ200A |
SMBJ200CA |
PW |
EW |
200.0 |
224.00 |
247.00 |
1 |
324.0 |
1.85 |
5 |
| SMBJ220A |
SMBJ220CA |
PX |
EX |
220.0 |
246.00 |
272.00 |
1 |
356.0 |
1.69 |
5 |
| SMBJ250A |
SMBJ250CA |
PZ |
EZ |
250.0 |
279.00 |
309.00 |
1 |
405.0 |
1.48 |
5 |
| SMBJ300A |
SMBJ300CA |
QE |
FE |
300.0 |
335.00 |
371.00 |
1 |
486.0 |
1.23 |
5 |
| SMBJ350A |
SMBJ350CA |
QG |
FG |
350.0 |
391.00 |
432.00 |
1 |
567.0 |
1.06 |
5 |
| SMBJ400A |
SMBJ400CA |
QK |
FK |
400.0 |
447.00 |
494.00 |
1 |
648.0 |
0.93 |
5 |
| SMBJ440A |
SMBJ440CA |
QM |
FM |
440.0 |
492.00 |
543.00 |
1 |
713.0 |
0.84 |
5 |
Notes:
1.1.Suffix 'A ' denotes 5% tolerance device.
2.2.Add suffix ' CA ' after part number to specify Bi-directional devices.
3.3.For Bi-Directional devices having VR of 10 volts and under, the IR limit is double.
Features:
For surface mounted applications in order to optimize board space
Low leakage
Uni and Bidirectional unit
Glass passivated junction
Low inductance
Excellent clamping capability
600W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01%
Fast response time: typically less than 1.0ps from 0 Volts to VBR min
Typical IR less than 5μA above 12V.
High Temperature soldering: 260°C/40 seconds at terminals
Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT
Plastic package has Underwriters Laboratory Flammability 94V-0
Matte tin lead–free Plated
Halogen free and RoHS compliant
Typical failure mode is short from over-specified voltage or current
Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
Applications:
TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
| Parameter |
Symbol |
Value |
Unit |
| Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note 1), (Note 2) |
PPPM |
600 |
Watts |
| Peak Pulse Current with a 10/1000µs waveform.(Note1,Fig.3) |
IPP |
See Next Table |
Amps |
| Power Dissipation on Infinite Heat Sink at TL=75°C |
PM(AV) |
5.0 |
Watt |
| Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) |
IFSM |
100 |
Amps |
| Maximum Instantaneous Forward Voltage at 25A for Unidirectional Only (Note 4) |
VF |
3.5/5.0 |
Voltage |
| Operating junction and Storage Temperature Range. |
TJ , TSTG |
-55 to +150 |
℃ |
|
Notes:
1. Non-repetitive current pulse, per Fig. 3 and derated above TA = 25℃ per Fig. 2.
2. Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal.
3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.
4. VF < 3.5V for VBR < 200V and VF< 6.5V for VBR > 201V.
|
