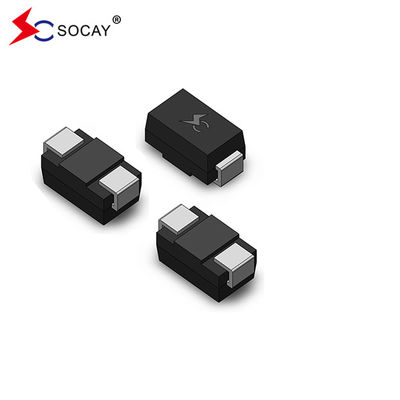

400W 6V SMD Transient Voltage Suppressor SMAJ6.0CA, Bi-directional TVS Diodes

5000PCS
MOQ
Negotiable
Price
400W 6V SMD Transient Voltage Suppressor SMAJ6.0CA, Bi-directional TVS Diodes
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: TVS Diodes
Package Type: DO-214AC/SMA
Vrwm: 6.0V
Vbr@It (Min.): 6.67V
Vbr@It (Max.): 7.37V
It: 10mA
Vc@Ipp: 10.3V
Ipp: 38.83A
Ir@Vrwm: 800μA
Storage Temperature Range: -55 To +150 ℃
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SMAJ6.0CA
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

400W 6V SMD Transient Voltage Suppressor SMAJ6.0CA, Bi-directional TVS Diodes​



DATASHEET:  SMAJ_v2207.1.pdf



400W 6V SMD Transient Voltage Suppressor SMAJ6.0CA, Bi-directional TVS Diodes 0





Part Number Marking

Reverse

Stand-Off

Voltage VRWM(V)

Breakdown

Voltage VBR (V)

@IT

Test

Current

IT (mA)

Maximum

Clamping

Voltage VC @IPP (V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi   MIN MAX
SMAJ3.3A — A1 — 3.3 4.10 -- 1 8.0 50.00 600
SMAJ5.0A SMAJ5.0CA AE WE 5.0 6.40 7.00 10 9.2 43.48 800
SMAJ6.0A SMAJ6.0CA AG WG 6.0 6.67 7.37 10 10.3 38.83 800
SMAJ6.5A SMAJ6.5CA AK WK 6.5 7.22 7.98 10 11.2 35.71 500
SMAJ7.0A SMAJ7.0CA AM WM 7.0 7.78 8.60 10 12.0 33.33 200
SMAJ7.5A SMAJ7.5CA AP WP 7.5 8.33 9.21 1 12.9 31.01 100
SMAJ8.0A SMAJ8.0CA AR WR 8.0 8.89 9.83 1 13.6 29.41 50
SMAJ8.5A SMAJ8.5CA AT WT 8.5 9.44 10.40 1 14.4 27.78 10
SMAJ9.0A SMAJ9.0CA AV WV 9.0 10.00 11.10 1 15.4 25.97 5
SMAJ10A SMAJ10CA AX WX 10.0 11.10 12.30 1 17.0 23.53 5
SMAJ11A SMAJ11CA AZ WZ 11.0 12.20 13.50 1 18.2 21.98 5
SMAJ12A SMAJ12CA BE XE 12.0 13.30 14.70 1 19.9 20.10 5
SMAJ13A SMAJ13CA BG XG 13.0 14.40 15.90 1 21.5 18.60 5
SMAJ14A SMAJ14CA BK XK 14.0 15.60 17.20 1 23.2 17.24 5
SMAJ15A SMAJ15CA BM XM 15.0 16.70 18.50 1 24.4 16.39 5
SMAJ16A SMAJ16CA BP XP 16.0 17.80 19.70 1 26.0 15.38 5
SMAJ17A SMAJ17CA BR XR 17.0 18.90 20.90 1 27.6 14.49 5
SMAJ18A SMAJ18CA BT XT 18.0 20.00 22.10 1 29.2 13.70 5
SMAJ19A SMAJ19CA BB XB 19.0 21.10 23.30 1 30.8 13.00 5
SMAJ20A SMAJ20CA BV XV 20.0 22.20 24.50 1 32.4 12.35 5
SMAJ22A SMAJ22CA BX XX 22.0 24.40 26.90 1 35.5 11.27 5
SMAJ24A SMAJ24CA BZ XZ 24.0 26.70 29.50 1 38.9 10.28 5
SMAJ26A SMAJ26CA CE YE 26.0 28.90 31.90 1 42.1 9.50 5
SMAJ28A SMAJ28CA CG YG 28.0 31.10 34.40 1 45.4 8.81 5
SMAJ30A SMAJ30CA CK YK 30.0 33.30 36.80 1 48.4 8.26 5
SMAJ33A SMAJ33CA CM YM 33.0 36.70 40.60 1 53.3 7.50 5
SMAJ36A SMAJ36CA CP YP 36.0 40.00 44.20 1 58.1 6.88 5
SMAJ40A SMAJ40CA CR YR 40.0 44.40 49.10 1 64.5 6.20 5
SMAJ43A SMAJ43CA CT YT 43.0 47.80 52.80 1 69.4 5.76 5



 Notes:



1.1.Suffix 'A ' denotes 5% tolerance device.

2. 2.Add suffix ' CA ' after part number to specify Bi-directional devices.

3. 3.For Bi-Directional devices having VR of 10 volts and under, the IR limit is double.







400W 6V SMD Transient Voltage Suppressor SMAJ6.0CA, Bi-directional TVS Diodes 1





Parameter Symbol Value Unit
Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note 1), (Note 2) PPPM 400 Watts
Peak Pulse Current with a 10/1000µs waveform.(Note1,Fig.3) IPP See Next Table Amps
Power Dissipation on Infinite Heat Sink at TL=75°C PM(AV) 1.0 Watt
Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) IFSM 40 Amps
Maximum Instantaneous Forward Voltage at 25A for Unidirectional Only (Note 4) VF 3.5/5.0 Voltage
Operating junction and Storage Temperature Range. TJ , TSTG -55 to +150 ℃

Notes:

1. Non-repetitive current pulse, per Fig. 3 and derated above TA = 25℃ per Fig. 2.

2. Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal.

3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.

4. VF < 3.5V for VBR < 200V and VF< 6.5V for VBR > 201V.





400W 6V SMD Transient Voltage Suppressor SMAJ6.0CA, Bi-directional TVS Diodes 2

400W 6V SMD Transient Voltage Suppressor SMAJ6.0CA, Bi-directional TVS Diodes 3
