Name: BZT52C2V4S 200mW Electronic Components Diode Zener 2.4V BOM Service
Brand: SOCAY
SKU: BZT52C2V4S
Rating: 4.7 (172 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Component Name: Zener Diode

Package Type: SOD-323

Power Dissipation: 200mW

Zener Voltage (Nom.): 2.4V

Zener Voltage (Min.): 2.2V

Zener Voltage (Max.): 2.6V

ZZT: 100Ω

IZT: 5.0mA

Highlight:

200mW Electronic Components

2.4V Electronic Components

BOM Diode Zener 2.4V

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: REACH,RoHS,ISO

Model Number: BZT52C2V4S

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

BZT52C2V4S 200mW Electronic Components Diode Zener 2.4V BOM Service

Product Description

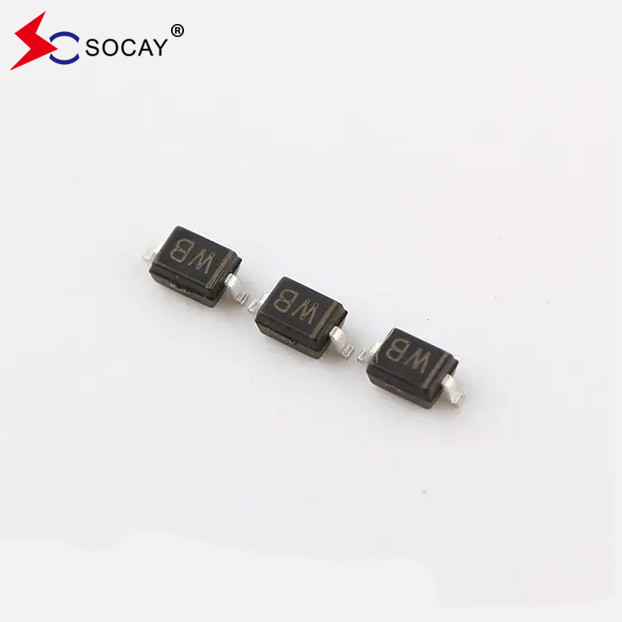

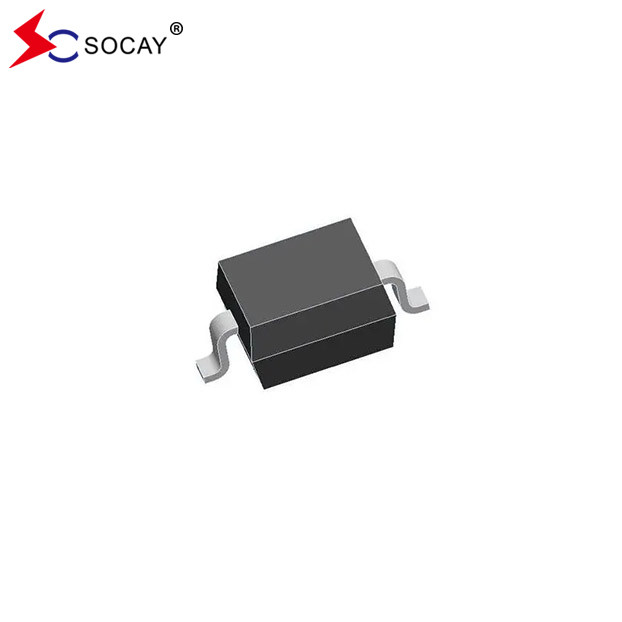

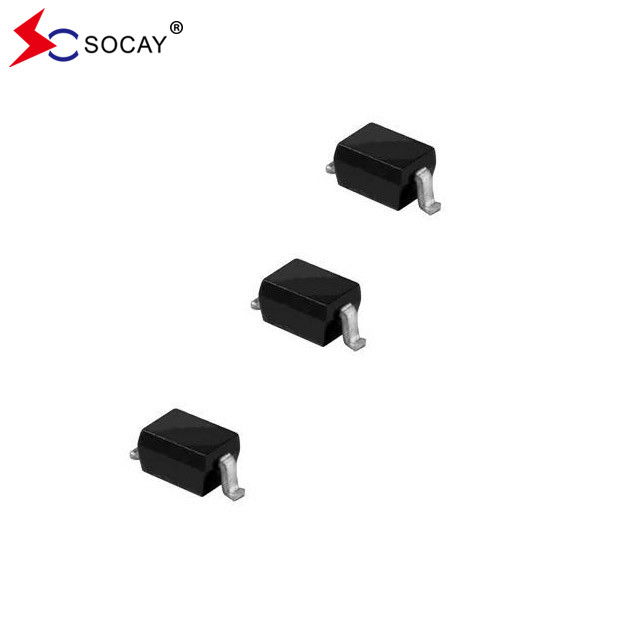

SOD-323 Package Zener Diode BZT52C2V4S 2.4V 200mW Electronic Components BOM Service

Zener Diode DATASHEET: BZT52C2V4S~BZT52C75S(SOD-323)_v2106.1.pdf

Zener Diode Features:

Constant Voltage control
Wide Voltage Range Selection 2.4V to 75V
SOD-323 Thin SMD package
RoHS compliant / Green EMC
Matte Tin (Sn) Lead finish

Zener Diode Absolute Maximum Ratings (TA=25℃):

Parameter	Symbol	Value	Units
Power Dissipation (Note 1)	P_D	200	mW
Junction Temperature	T_J	150	℃
Storage Temperature	T_STG	-55 to +150	℃
Maximum Regulator Current	I_ZM	P_D / V_Z	mA

Note1: Device mounted on ceramic PCB: 7.6mm x 9.4mm x 0.87mm with pad areas 25mm2 .

Zener Diode Electrical Characteristics (TA=25℃):

Part Number	Zener Voltage Range (Note 2)			Maximum Zener Impedance (Note 3)				Maximum Leakage Current (Note 2)
	V_Z @ I_ZT			Z_ZT @ I_ZT		Z_ZK @ I_ZK		I_R @ V_R
	Nom.(V)	Min.(V)	Max.(V)	(Ω)	(mA)	(Ω)	(mA)	(μA)	(V)
BZT52C2V4S	2.4	2.20	2.60	100	5.0	600	1.0	50	1.0
BZT52C2V7S	2.7	2.50	2.90	100	5.0	600	1.0	20	1.0
BZT52C3V0S	3.0	2.80	3.20	95	5.0	600	1.0	10	1.0
BZT52C3V3S	3.3	3.10	3.50	95	5.0	600	1.0	5	1.0
BZT52C3V6S	3.6	3.40	3.80	90	5.0	600	1.0	5	1.0
BZT52C3V9S	3.9	3.70	4.10	90	5.0	600	1.0	3	1.0
BZT52C4V3S	4.3	4.00	4.60	90	5.0	600	1.0	3	1.0
BZT52C4V7S	4.7	4.40	5.00	80	5.0	500	1.0	3	2.0
BZT52C5V1S	5.1	4.80	5.40	60	5.0	480	1.0	2	2.0
BZT52C5V6S	5.6	5.20	6.00	40	5.0	400	1.0	1	2.0
BZT52C6V2S	6.2	5.80	6.60	10	5.0	150	1.0	3	4.0
BZT52C6V8S	6.8	6.40	7.20	15	5.0	80	1.0	2	4.0
BZT52C7V5S	7.5	7.00	7.90	15	5.0	80	1.0	1	5.0
BZT52C8V2S	8.2	7.70	8.70	15	5.0	80	1.0	0.7	5.0
BZT52C9V1S	9.1	8.50	9.60	15	5.0	100	1.0	0.5	6.0
BZT52C10S	10	9.40	10.60	20	5.0	150	1.0	0.2	7.0
BZT52C11S	11	10.40	11.60	20	5.0	150	1.0	0.1	8.0
BZT52C12S	12	11.40	12.70	25	5.0	150	1.0	0.1	8.0
BZT52C13S	13	12.40	14.10	30	5.0	170	1.0	0.1	8.0
BZT52C15S	15	13.80	15.60	30	5.0	200	1.0	0.1	10.5
BZT52C16S	16	15.30	17.10	40	5.0	200	1.0	0.1	11.2
BZT52C18S	18	16.80	19.10	45	5.0	225	1.0	0.1	12.6
BZT52C20S	20	18.80	21.20	55	5.0	225	1.0	0.1	14.0
BZT52C22S	22	20.80	23.30	55	5.0	250	1.0	0.1	15.4
BZT52C24S	24	22.80	25.60	70	5.0	250	1.0	0.1	16.8

BZT52C27S	27	25.10	28.90	80	2.0	300	0.5	0.1	18.9
BZT52C30S	30	28.00	32.00	80	2.0	300	0.5	0.1	21.0
BZT52C33S	33	31.00	35.00	80	2.0	325	0.5	0.1	23.1
BZT52C36S	36	34.00	38.00	90	2.0	350	0.5	0.1	25.2
BZT52C39S	39	37.00	41.00	130	2.0	350	0.5	0.1	27.3
BZT52C43S	43	40.00	46.00	100	2.0	700	1.0	0.1	32.0
BZT52C47S	47	44.00	50.00	100	2.0	750	1.0	0.1	35.0
BZT52C51S	51	48.00	54.00	100	2.0	750	1.0	0.1	38.0
BZT52C56S	56	53.20	58.80	200	2.0	400	0.5	0.045	39.2
BZT52C62S	62	58.90	65.10	215	2.0	423	0.5	0.045	43.4
BZT52C68S	68	64.60	71.40	240	2.0	447	0.5	0.045	47.6
BZT52C75S	75	71.25	78.75	255	2.0	470	0.5	0.045	52.5

Note 2: Short duration test pulse used to minimize self-heating effect. Note 3: f=1kHZ.

SOD-323 Package Zener Diode Circuit Diagram:

BZT52C2V4S 200mW Electronic Components Diode Zener 2.4V BOM Service 0

SOD-323 Package Zener Diode Dimensions:

SOD-323 Package Zener Diode Ordering Information:

Part Number	Package	Shipping

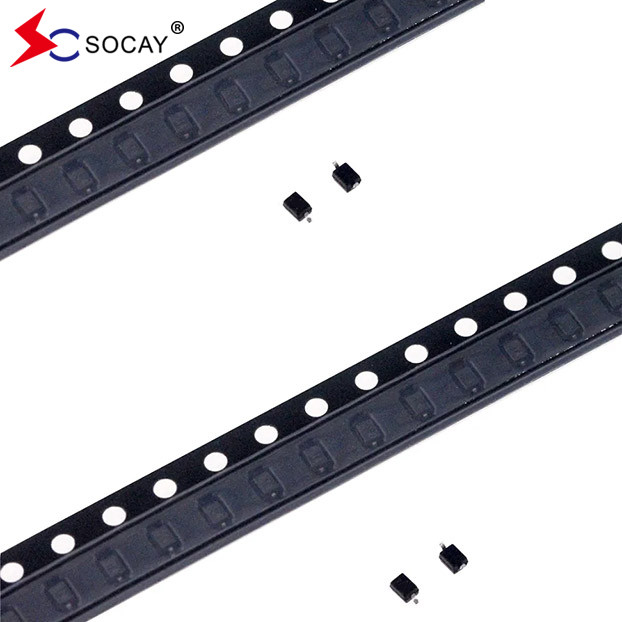

BZT52C2V4S~BZT52C75S	SOD-323	Tape & Reel 3000 PCS / 7” Reel
