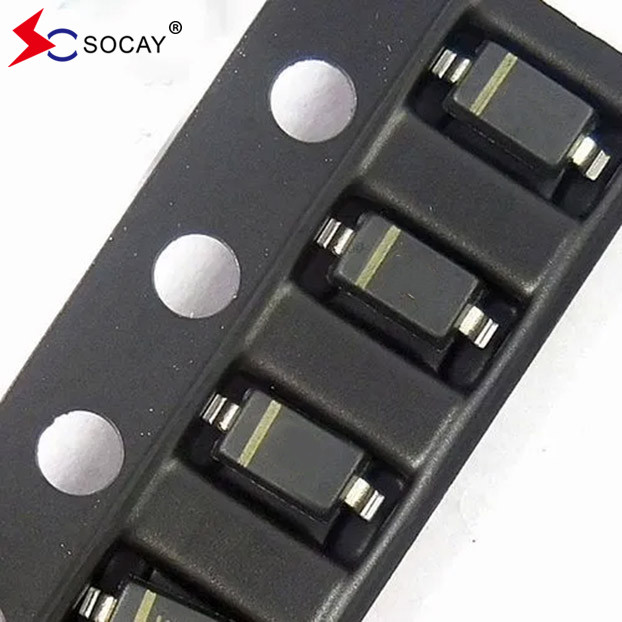

350mW Power Dissipation Electronics Component BZT52C27 Diode Zener 27V

350mW Power Dissipation Electronics Component BZT52C27 Diode Zener 27V
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Zener Diode
Zener Diode Package Type: SOD-123
Zener Diode Power Dissipation: 350mW
Zener Voltage (Nom.): 27V
Zener Voltage (Min.): 25.65V
Zener Voltage (Max.): 28.35V
ZZK: 300Ω
IZK: 0.5mA
Highlight:

Electronics Component 27V

,

Electronics Component 350mW

,

Diode Zener 27V Component
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: REACH,RoHS,ISO
Model Number: BZT52C27
Document: Product Brochure PDF
Payment & Shipping Terms
Product Description

SOCAY 27V 350mW BZT52C27 SOD-123 Package SMD Zener Diode



Zener Diode DATASHEET: BZT52C2V4_BZT52C75(SOD-123)_v2204.1.pdf





Zener Diode Features:

  • Planar Die construction
  • 350mW Power Dissipation
  • Zener Voltages from 2.4~75V
  • Ideally Suited for Automated Assembly Processes
  • Lead free in compliance with EU RoHS 2.0
  • Green molding compound as per IEC 61249 standard

​



Zener Diode Mechanical Date:

  • Case: SOD-123, Molded Plastic
  • Terminals: Solderable per MIL-STD-750, Method 2026
  • Polarity: See Diagram Below
  • Approx. Weight: 0.0004 ounces, 0.01 grams





Zener Diode Maximum Ratings (TA=25℃ unless otherwise specified):

Zener Diode Parameter Symbol Value Units
Zener Diode Power Dissipation (Note 1) PD 350 mW
Thermal Resistance from Junction to Ambient RθJA 357 ℃/W
Zener Diode  Junction Temperature TJ 150 ℃
Zener Diode  StorageTemperature TSTG -55 to +150 ℃
Note1: Device mounted on ceramic PCB: 7.6mm x 9.4mm x 0.87mm with pad areas 25mm2 .













Zener Diode Electrical Characteristics (TA=25℃):

Part Number Zener Voltage Range (Note 2) Maximum Zener Impedance (Note 3)

Maximum

Leakage Current (Note 2)
  VZ @ IZT ZZT @ IZT ZZK @ IZK IR @ VR
  Nom.(V) Min.(V) Max.(V) (Ω) (mA) (Ω) (mA) (μA) (V)
BZT52C2V4 2.4 2.20 2.60 100 5.0 600 1.00 50 1.0
BZT52C2V7 2.7 2.50 2.90 100 5.0 600 1.00 20 1.0
BZT52C3V0 3.0 2.80 3.20 95 5.0 600 1.00 10 1.0
BZT52C3V3 3.3 3.10 3.50 95 5.0 600 1.00 5 1.0
BZT52C3V6 3.6 3.40 3.80 90 5.0 600 1.00 5 1.0
BZT52C3V9 3.9 3.70 4.10 90 5.0 600 1.00 3 1.0
BZT52C4V3 4.3 4.00 4.60 90 5.0 600 1.00 3 1.0
BZT52C4V7 4.7 4.40 5.00 80 5.0 500 1.00 3 2.0
BZT52C5V1 5.1 4.80 5.40 60 5.0 480 1.00 2 2.0
BZT52C5V6 5.6 5.20 6.00 40 5.0 400 1.00 1 2.0
BZT52C6V2 6.2 5.80 6.60 10 5.0 150 1.00 3 4.0
BZT52C6V8 6.8 6.40 7.20 15 5.0 80 1.00 2 4.0
BZT52C7V5 7.5 7.00 7.90 15 5.0 80 1.00 1 5.0
BZT52C8V2 8.2 7.70 8.70 15 5.0 80 1.00 0.7 5.0
BZT52C9V1 9.1 8.60 9.60 15 5.0 100 1.00 0.5 6.0
BZT52C10 10 9.40 10.60 20 5.0 150 1.00 0.2 7.0
BZT52C11 11 10.40 11.60 20 5.0 150 1.00 0.1 8.0
BZT52C12 12 11.40 12.70 25 5.0 150 1.00 0.1 8.0
BZT52C13 13 12.40 14.10 30 5.0 170 1.00 0.1 8.0
BZT52C15 15 13.80 15.60 30 5.0 200 1.00 0.1 10.5
BZT52C16 16 15.30 17.10 40 5.0 200 1.00 0.1 11.2
BZT52C18 18 16.80 19.10 45 5.0 225 1.00 0.1 12.6
BZT52C20 20 18.80 21.20 55 5.0 225 1.00 0.1 14.0
BZT52C22 22 20.80 23.30 55 5.0 250 1.00 0.1 15.4
BZT52C24 24 22.80 25.60 70 5.0 250 1.00 0.1 16.8
BZT52C27 27 25.10 28.90 80 2.0 300 0.50 0.1 18.9
BZT52C30 30 28.00 32.00 80 2.0 300 0.50 0.1 21.0
BZT52C33 33 31.00 35.00 80 2.0 325 0.50 0.1 23.1
BZT52C36 36 34.00 38.00 90 2.0 350 0.50 0.1 25.2
BZT52C39 39 37.00 41.00 130 2.0 350 0.50 0.1 27.3
BZT52C43 43 40.00 46.00 100 5.0 700 1.00 0.1 32.0
BZT52C47 47 44.00 50.00 100 2.0 750 1.00 0.1 35.0
BZT52C51 51 48.00 54.00 100 2.0 750 1.00 0.1 38.0
BZT52C56 56 53.20 58.80 200 2.0 400 0.50 0.1 39.2
BZT52C62 62 58.90 65.10 215 2.0 423 0.50 0.1 43.4
BZT52C68 68 64.60 71.40 240 2.0 447 0.50 0.1 47.6
BZT52C75 75 71.25 78.75 255 2.0 470 0.50 0.1 52.5

Note 2: Short duration test pulse used to minimize self-heating effect.

Note 3: f=1kHZ.









SOD-123 Package Zener Diode ​Circuit Diagram:

350mW Power Dissipation Electronics Component BZT52C27 Diode Zener 27V 0





Zener Diode Rating and Characteristic Curves:

Fig1. Power Derating Curve

350mW Power Dissipation Electronics Component BZT52C27 Diode Zener 27V 1



Fig2. Typical Junction Capacitance

350mW Power Dissipation Electronics Component BZT52C27 Diode Zener 27V 2



Fig3. Typical Zener Breakdown

350mW Power Dissipation Electronics Component BZT52C27 Diode Zener 27V 3



Fig4. Typical Zener Breakdown

350mW Power Dissipation Electronics Component BZT52C27 Diode Zener 27V 4





Fig5. Typical Zener Breakdown

350mW Power Dissipation Electronics Component BZT52C27 Diode Zener 27V 5





SOD-123 Package Zener Diode Outline (Dimensions in inches and (millimeters)):

350mW Power Dissipation Electronics Component BZT52C27 Diode Zener 27V 6





SOD-123 Package Zener Diode ​Ordering Information:

Zener Diode Part Number Component Package Quantity Packaging Option
BZT52C2V4~BZT52C75 SOD-123 10000 PCS per 13" plastic Reel
BZT52C2V4~BZT52C75 SOD-123 3000 PCS per 7" plastic Reel





350mW Power Dissipation Electronics Component BZT52C27 Diode Zener 27V 7
