Home /Products/Schottky Barrier Diode/SOD-123FL Package Schottky Barrier Rectifiers SBD102D1~SBD120D1 20 To 200VRRM SBD104D1

SOD-123FL Package Schottky Barrier Rectifiers SBD102D1~SBD120D1 20 To 200VRRM SBD104D1

3000PCS
MOQ
Negotiable
Price
SOD-123FL Package Schottky Barrier Rectifiers SBD102D1~SBD120D1 20 To 200VRRM SBD104D1
Features Gallery Product Description Request A Quote
Features
Specifications
SBD104D1 Name: Schottky Barrier Rectifiers
SBD104D1 Package: DO-214AAB/SMC
SBD104D1 Max. VRRM: 40V
Maximum RMS Voltage: 28V
Maximum VDC: 40V
Average Rectified Current: 1A
IF(RMS): 2A
CJ: 155pF
Highlight:

SBD104D1

,

SBD104D1 Schottky Barrier Rectifiers
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: REACH,RoHS,ISO
Model Number: SBD104D1
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SOD-123FL Package Schottky Barrier Rectifiers SBD102D1~SBD120D1 20 to 200VRRM SBD104D1



Schottky Barrier Rectifiers SBD102D1~SBD120D1​ DATASHEET: SBD102D1~SBD120D1(SOD-123FL)_v2109.1.pdf





The Features of Schottky Barrier Rectifiers SBD104D1 :

  • Fast switching speed
  • Surface mount package ideally suited for automatic insertion
  • Schottky Barrier Rectifiers SBD104D1 has Low power loss, high efficiency
  • SBD104D1 Lead free in compliance with EU RoHS 2.0

  • The product SBD104D1 is Green molding compound as per IEC 61249 standard



Mechanical Data of Schottky Barrier Rectifiers SBD104D1:

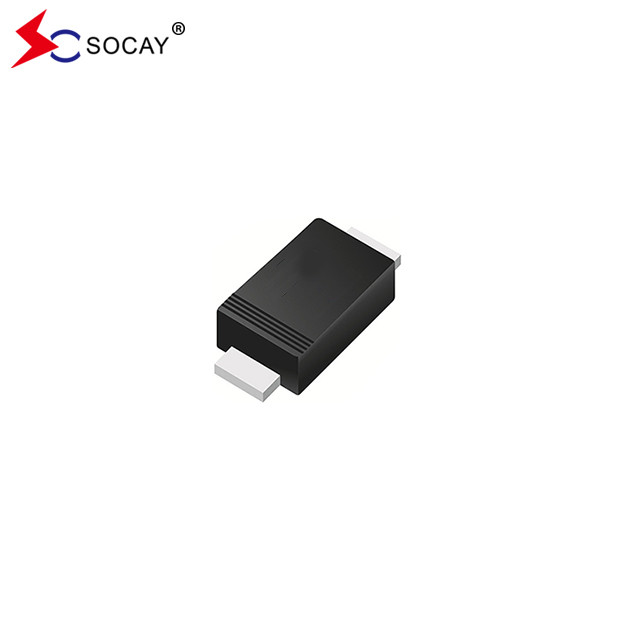

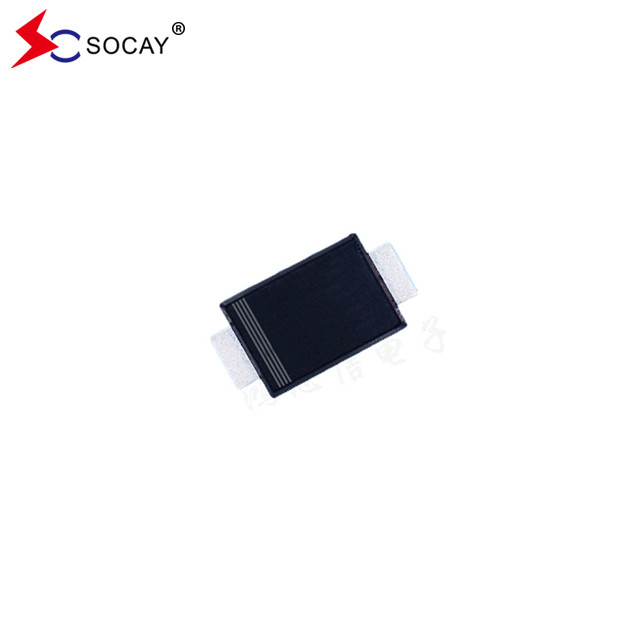

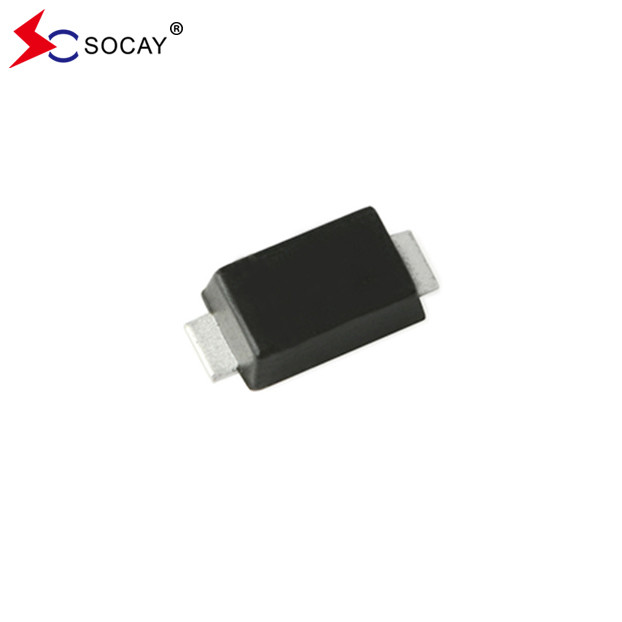

  • Case: SOD-123FL, Plastic
  • Component's Terminals: Solderable per MIL-STD-750, Method 2026

  • Its Polarity: Color band denotes cathode end

  • SBD104D1 has Apporx. Weight: 0.0006 ounces, 0.0173 grams





Schottky Barrier Rectifiers SBD104D1 Electrical and Thermal Characteristics (TA=25℃ unless otherwise noted):

SBD104D1 Parameter Symbol SBD102D1 SBD103D1 SBD104D1 SBD106D1 SBD110D1 SBD115D1 SBD120D1 Unit

SBD104D1 Maximum VRRM

 VRRM 20 30 40 60 100 150 200 V
Maximum VRMS VRMS 14 21 28 42 70 105 140 V
Maximum VDC VDC 20 30 40 60 100 150 200 V
Average Rectified Current IF(AV) IF(AV) 1 A
SBD104D1 Forward Current RMS, D=0.5 IF(RMS) 2 A
SBD104D1 Non-repetitive Peak Forward Surge Current at t=8.3ms IFSM 40 30 A
Maximum VF at IF=1A VF 0.55 0.7 0.8 0.85 V
SBD104D1 Reverse Leakage Current at VRRM IR 30 μA

SBD104D1  Typical Thermal

Resistance

 (Note 1) RθJC 32 ℃/W
  (Note 2) RθJA 200
Typical CJ Rating at VR=0V CJ 155 125 100 85 pF
SBD104D1 Operating Junction Temperature and Storage Temperature Range TJ,TSTG -55 to +150 ℃

Notes:1.Mounted on a FR4 PCB, single-sided copper, with 100cm2 copper pad area.

2.Mounted on a FR4 PCB, single-sided copper, mini pad.









Schottky Barrier Rectifiers SBD104D1 SOD-123FL Package Outline (Unit:inch(mm)):

SOD-123FL Package Schottky Barrier Rectifiers SBD102D1~SBD120D1 20 To 200VRRM SBD104D1 0







Packaging Information:

Part Number Component Package Quantity Packaging Option
SBD102D1~SBD120D1 SOD-123FL 3000 PCS per 7" plastic Reel









SOD-123FL Package Schottky Barrier Rectifiers SBD102D1~SBD120D1 20 To 200VRRM SBD104D1 1

IF(AV)
Tag:

Surface Mount Schottky Barrier Rectifiers

SBD104D1

SMB Package Schottky Barrier Diode
