Name: 100VRRM Surface Mount Schottky Barrier Diode SS810C 70VRMS Voltage SMC Package
Brand: Shenzhen Socay Electronics Co., Ltd.
SKU: SS810C
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Component Name: Schottky Barrier Diode

Component Package: DO-214AAB/SMC

Max. VRRM: 100V

Component Max. VRMS: 70V

Product Max. VDC: 100V

SS810C IF(AV): 8A

VF At 8A: 0.8V

SS810C IR: 50μA

Highlight:

SS810C

Surface Mount Schottky Barrier Diode

SS810C Schottky Barrier Diode

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: REACH,RoHS,ISO

Model Number: SS810C

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

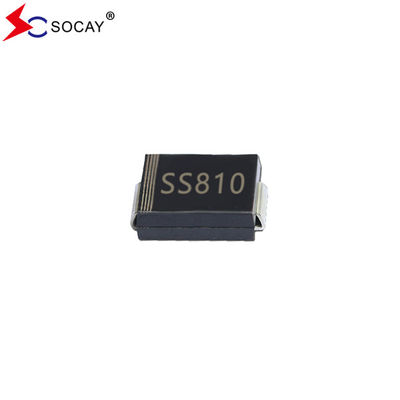

100VRRM Surface Mount Schottky Barrier Diode SS810C 70VRMS Voltage SMC Package

Product Description

100VRRM Surface Mount Schottky Barrier Diode SS810C 70VRMS Voltage SMC Package

Schottky Barrier Diode SS810C DATASHEET: SS810C(SMC)_v94.1.pdf

Schottky Barrier Diode SS810C Features are as Follows:

Schottky Barrier Diode SS810C Plastic package is UL94V-0.
For surface mount package applications is in order to optimize board space.
SS810C has Low power loss, high efficiency.
SS810C Green molding compound as per IEC 61249 standard.
This coponent has High surge capacity.
Lead free, Schottky Barrier Diode is in compliance with EU RoHS 2.0.

Schottky Barrier Diode SS810C Mechanical Data:

Schottky Barrier Diode SS810C Case: JEDEC DO-214AB molded plastic.
Its Terminals: Solder plated, solderable per MIL-STD-750, Method 2026.
Schottky Barrier Diode SS810C Polarity: Color band denotes cathode end.
Its Standard packaging: 16mm tape (EIA-481).
Schottky Barrier Diode SS810C Approx. Weight: 0.0082 ounces, 0.2325 grams.

Max. Ratings and Electrical Characteristics of Schottky Barrier Diode SS810C:

SS810C Ratings at 25℃ ambient temperature unless otherwise specified. Resistive or inductive load.
SS810C Parameter		Symbol	SS810C	SS810C Unit
Schottky Barrier Diode Max. Recurrent Peak Reverse Voltage		VRRM	100	V
Schottky Barrier Diode Maximum RMS Voltage		VRMS	70	V
Schottky Barrier Diode Max. VDC		VDC	100	V
Schottky Barrier Diode Maximum Average Forward Current		IF(AV)	8	A
Peak Forward Surge Current : 8.3ms Single Half Sinewave Superimposed on Rated Load		IFSM	150	A
SS810C Maximum Forward Voltage at 8A		VF	0.8	V
Maximum DC Reverse Current at Rated DC Blocking Voltage		IR	50	μA
Schottky Barrier Diode Typical Thermal Resistance	(Note 1)	RθJL	15	℃/W
	(Note 2)	RθJA	110
SS810C Operating Junction and Storage Temperature Range		TJ,TSTG	-55 to +150	℃
Notes: 1. Mounted on a FR4 PCB, single-sided copper, with 100cm2 copper pad area. 2. Mounted on a FR4 PCB, single-sided copper, mini pad.

Schottky Barrier Diode SS810C Rating and Characteristic Curves:

Fig1. Schottky Barrier Diode SS810C Operating Temperature Derating Curve:

100VRRM Surface Mount Schottky Barrier Diode SS810C 70VRMS Voltage SMC Package 0

Fig2. Typical Forward Characteristics

100VRRM Surface Mount Schottky Barrier Diode SS810C 70VRMS Voltage SMC Package 1

Schottky Barrier Diode SS810C SMC/DO-214AB Package Outline (Unit:inch(mm)):

100VRRM Surface Mount Schottky Barrier Diode SS810C 70VRMS Voltage SMC Package 2

Packaging Information:

Part Number	Component Package	Quantity	Packaging Option
SS810C	SMC/DO-214AB	3000 PCS	per 13" plastic Reel
		800 PCS	per 7" plastic Reel

100VRRM Surface Mount Schottky Barrier Diode SS810C 70VRMS Voltage SMC Package 3
