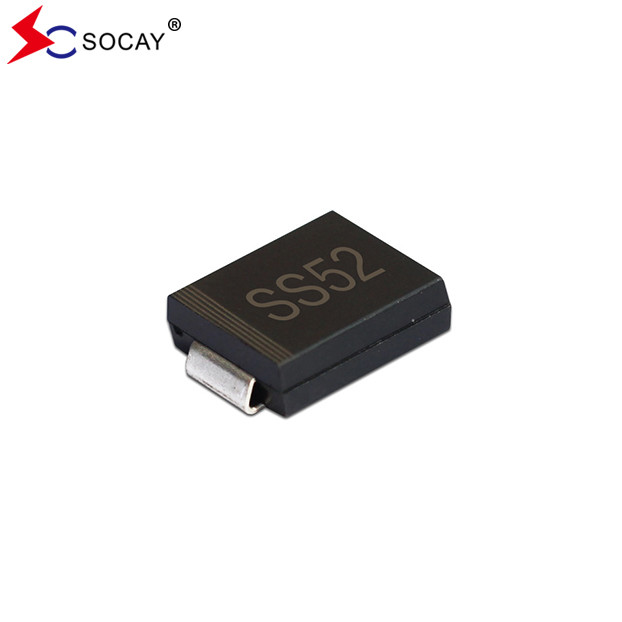

Name: Surface Mount Schottky Barrier Rectifiers SS52C~SS520C 20VRRM DO-214AB Package
Brand: SOCAY
SKU: SS52C
Rating: 4.9 (179 reviews)

Surface Mount Schottky Barrier Rectifiers SS52C~SS520C 20VRRM DO-214AB Package

3000PCS

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

SS52C Name: Schottky Barrier Rectifiers

SS52C Package: DO-214AAB/SMC

SS52C Max. VRRM: 40V

SS52C Max. VRMS: 28V

SS52C Max. VDC: 40V

Max. VF At 3A: 0.55V

IF(AV): 5A

TJ: -55 To +125℃

Highlight:

SS52C Schottky Barrier Rectifiers

DO-214AB Package Schottky Barrier Rectifiers

SS52C

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: REACH,RoHS,ISO

Model Number: SS52C

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

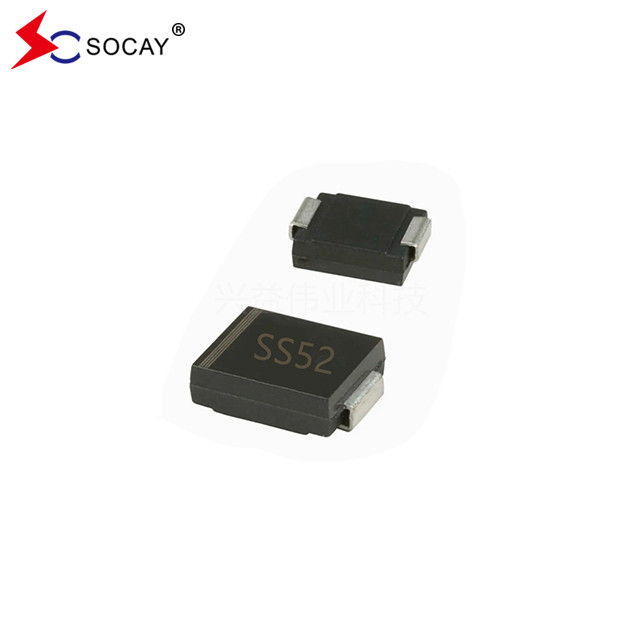

Gallery

Surface Mount Schottky Barrier Rectifiers SS52C~SS520C 20VRRM DO-214AB Package

Product Description

Surface Mount Schottky Barrier Rectifiers SS52C~SS520C 20VRRM DO-214AB Package

Schottky Barrier Rectifiers SS52C~SS520C DATASHEET: SS52C_SS520C(SMC)_v2311.1.pdf

Schottky Barrier Rectifiers SS52C~SS520C Features:

SS52C~SS520C Plastic package is in compliance with UL94V-0.
For DO-214AB package applications is in order to optimize board space.
SS52C~SS520C has Low power loss, high efficiency.
The product green molding compound as per IEC 61249 standard.
This coponent has High surge capacity. That is so good.
SS52C Lead free in compliance with EU RoHS 2.0.

The Following is Mechanical Data:

Schottky Barrier Rectifiers SS52C~SS520C Case: JEDEC DO-214AB molded plastic.
Component Terminals: Solder plated, solderable per MIL-STD-750, Method 2026.
Schottky Barrier Rectifiers SS52C~SS520C Polarity: Color band denotes cathode end.
SS52C Standard packaging: 16mm tape (EIA-481).
Schottky Barrier Rectifiers SS52C~SS520C Approx. Weight: 0.0082 ounces, 0.2325 grams.

Max. Ratings and Electrical Features of Schottky Barrier Rectifiers SS52C~SS520C:

Ratings at 25℃ ambient temperature unless otherwise specified. Resistive or inductive load.
SS52C~SS520C Parameter		Symbol	SS52C	SS53C	SS54C	SS55C	SS56C	SS58C	SS510C	SS515C	SS520C	Unit
Max. Recurrent Peak Reverse Voltage VRRM		VRRM	20	30	40	50	60	80	100	150	200	V
SS52C~SS520C Maximum RMS Voltage		VRMS	14	21	28	35	42	56	70	105	140	V
SS52C~SS520C Maximum DC Blocking Voltage		VDC	20	30	40	50	60	80	100	150	200	V
Max. IF(AV) at TL = 75℃		IF(AV)	5									A
SS52C~SS520C IFSM : 8.3ms Single Half Sinewave Superimposed on Rated Load		IFSM	100									A
Max. Forward Voltage at 5A (Note 1)		VF	0.55			0.74		0.8		0.9		V
Maximum IR at Rated DC Blocking Voltage	TJ=25℃	IR	0.2			0.05						mA
	TJ=100℃		20			10
SS52C~SS520C Typical Thermal Resistance (Note 2)		RθJL	17									℃/W
		RθJA	55
SS52C~SS520C Operating Junction Temperature Range		TJ	-55 to +125		-55 to +150	-65 to +175						℃
SS52C~SS520C Storage Temperature Range		TSTG	-55 to +150			-65 to +175						℃
Notes:1. SS52C~SS520C Pulse Test with PW =300μsec, 1% Duty Cycle. 2. SS52C~SS520C Mounted on P.C. Board with 14mm2 (0.013mm thick) copper pad areas.

Schottky Barrier Rectifiers SS52C~SS520C Rating and Characteristic Curves:

Fig1. Schottky Barrier Rectifiers SS52C~SS520C Forward Current Derating Curve:

Surface Mount Schottky Barrier Rectifiers SS52C~SS520C 20VRRM DO-214AB Package 0

Fig2. SS52C~SS520C Maximum Non-Repetitive Surge Current:

Surface Mount Schottky Barrier Rectifiers SS52C~SS520C 20VRRM DO-214AB Package 1

Schottky Barrier Rectifiers SS52C~SS520C Package Outline (Unit:inch(mm)):

Surface Mount Schottky Barrier Rectifiers SS52C~SS520C 20VRRM DO-214AB Package 2

Packaging Information:

Part Number	Component Package	Quantity	Packaging Option
SS52C~SS520C	SMC/DO-214AB	3000 PCS	per 13" plastic Reel
		800 PCS	per 7" plastic Reel

Surface Mount Schottky Barrier Rectifiers SS52C~SS520C 20VRRM DO-214AB Package 3
