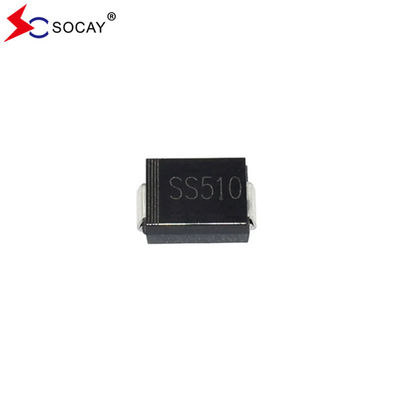

VRRM 40V SS54B SS510B 100VRRM Schottky Barrier Rectifiers 0.55V Forward Voltage

3000PCS
MOQ
Negotiable
Price
VRRM 40V SS54B SS510B 100VRRM Schottky Barrier Rectifiers 0.55V Forward Voltage
Features Gallery Product Description Request A Quote
Features
Specifications
Rectifiers Name: Schottky Barrier Rectifiers
Rectifiers Package: DO-214AA/SMB
Rectifiers Max. VRRM: 40V
Maximum VRMS: 28V
Component Max. VDC: 40V
Max. VF At 5A: 0.55V
IR At 25℃: 1.0mA
IR At 100℃: 50mA
Highlight:

SS54B

,

SS54B Schottky Barrier Rectifiers
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: REACH,RoHS,ISO
Model Number: SS54B
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

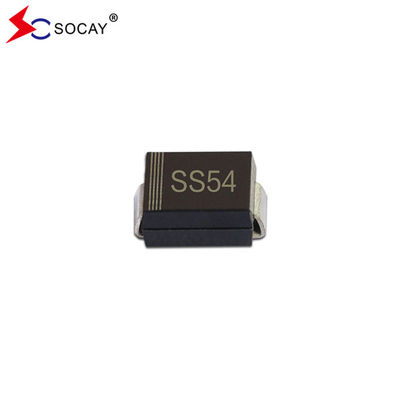

VRRM 40V SS54B Schottky Barrier Rectifiers 0.55V Forward Voltage Schottky Diode



Schottky Barrier Rectifiers​ DATASHEET: SS52B~SS520B(SMB)_v2205.1.pdf





VRRM 40V SS54B Schottky Characteristics:

  • Metal silicon junction, majority carrier conduction
  • For surface mounted applications
  • Low power loss, high efficiency
  • High forward surge current capability
  • SS54B is for use in low voltage, high frequency inverters, free wheeling, and polarity protection applications



VRRM 40V SS54B Schottky Mechanical Data is as Follows:

  • SS54B Case: SMB
  • Terminals: Solderable per MIL-STD-750, Method 2026

  • Approx. Weight: 0.1g / 0.0034oz





Electrical and Thermal Characteristics of Schottky Barrier Rectifiers​ SS52B:

Parameter Symbol SS52B SS54B SS56B SS58B SS510B SS512B SS515B SS520B Unit
Maximum VRRM Value VRRM 20 40 60 80 100 120 150 200 V
Schottky Barrier Rectifiers​ Max. RMS Voltage VRMS 14 28 42 56 70 84 105 140 V
Max. DC Blocking Voltage VDC 20 40 60 80 100 120 150 200 V
Max. Average Forward Current IF(AV) 5.0 A

Peak Forward Surge Current,8.3ms

Single Half Sine-wave Superimposed

on Rated Load (JEDEC method)



 IFSM 100 A
Schottky Barrier Rectifiers Max VF at 5 A VF 0.55 0.70 0.85 V

Maximum IR at Rated DC Reverse Voltage

 Ta=25℃ IR

1.0

50

0.3

25

 mA
  Ta=100℃
Typ. Junction Capacitance(1) Cj 500 300 pF
Typ. Thermal Resistance(2) RθJA 50 ℃/W
Operating Junction Temperature Range TJ -55 to +150 ℃
Storage Temperature Range TSTG -55 to +150 ℃

Notes:1.Measured at 1MHz and applied reverse voltage of 4 V D.C..

2. P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas.











Schottky Barrier Rectifiers​ SS52B Rating and Characteristic Curves:

Fig1. SS52B Forward Current Derating Curve:

VRRM 40V SS54B SS510B 100VRRM Schottky Barrier Rectifiers 0.55V Forward Voltage 0



Fig2. SS52B Typical Reverse Characteristics:

VRRM 40V SS54B SS510B 100VRRM Schottky Barrier Rectifiers 0.55V Forward Voltage 1





Schottky Barrier Rectifiers​ SS52B SMB Package Dimensions:

Plastic surface mounted package; 2 leads

VRRM 40V SS54B SS510B 100VRRM Schottky Barrier Rectifiers 0.55V Forward Voltage 2

Symbol mm mil
  min. max. min. max.
A 2.13 2.46 84 97
E 4.06 4.70 160 185
D 3.3 3.94 130 155
E1 5.08 5.59 200 220
A1 0.05 0.20 2.0 7.9
L 0.8 1.5 32 59
C 0.152 0.305 6 12
b 1.9 2.2 75 87





Packaging Information:

Part Number Component Package Quantity
SS52B~SS520B SMB 3000 PCS









VRRM 40V SS54B SS510B 100VRRM Schottky Barrier Rectifiers 0.55V Forward Voltage 3
