SOCAY SMB Package 100V Schottky Diode SS310B SS34B SS38B 3A Average Forward Current

3000PCS
MOQ
Negotiable
Price

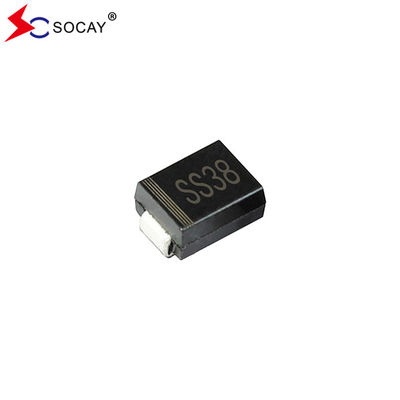

SOCAY SMB Package 100V Schottky Diode SS310B SS34B SS38B 3A Average Forward Current
Features Gallery Product Description Request A Quote
Features
Specifications
Component Name: Schottky Diode
Component Package: DO-214AA/SMB
Component Max. VRRM: 100V
Max. VRMS: 70V
Component Max. VDC: 100V
Max. VF: 0.8V
TJ: -65 To +175℃
TSTG: -65 To +175℃
Highlight:

SMB Package Schottky Diode

,

100V Schottky Diode

,

SS310B
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: REACH,RoHS,ISO
Model Number: SS310B
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days

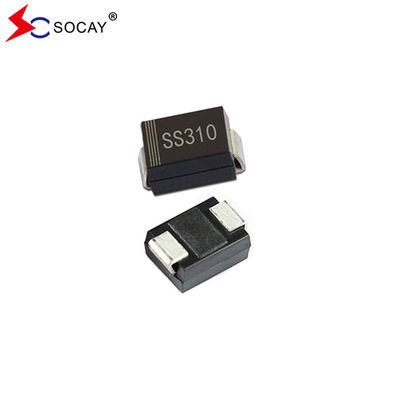

Product Description

SOCAY SMB Package Schottky Diode SS310B SS34B SS38B 3A Average Forward Current​



Schottky Diode DATASHEET: SS32B~SS320B(SMB)_v93.1.pdf





Characteristics of Schottky Diode SS310B:

  • Schottky Diode SS310B Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • SMD applications is in order to optimize board space.
  • Schottky Diode SS310B has low power loss, High efficiency.

  • Green molding compound as per IEC 61249 standard.

  • High surge capacity is very nice.
  • Schottky Diode SS310B Lead free in compliance with EU RoHS 2.0.



Schottky Diode SS310B Mechanical Data is as Below:

  • SS310B Case: JEDEC SMB package molded plastic.
  • SS310B Terminals: Solder plated, solderable per MIL-STD-750, Method 2026.

  • Approximate Weight: 0.0032 ounces, 0.092 grams.

  • Schottky Diode Polarity: Color band denotes cathode end.
  • Its standard packaging: 12mm tape (EIA-481).





Electrical and Thermal Characteristics of Schottky Barrier Diode​ SS32B:

Parameter Symbol     SS34B     SS38B SS310B     Unit
Schottky Diode Max. VRRM VRRM     40     80 100     V
Schottky Diode Max. RMS Voltage VRMS     28     56 70     V
Maximum VDC VDC     40     80 100     V
Max. Average IF(AV) IF(AV) 3 A
IFSM : 8.3ms Single Half Sinewave Superimposed on Rated Load IFSM 80 A
Schottky Diode Max. VF at 3A (Note 1) VF 0.5 0.74 0.8 0.9 V
Max. DC Reverse Current at Rated DC Blocking Voltage TJ=25℃ IR 0.2 0.05 mA
  TJ=100℃   20 10
Schottky Diode Typical Thermal Resistance (Note 2) RθJA 135 ℃/W
  (Note 3) RθJL 23
Operating Junction Temperature Range and Storage Temperature Range

TJ,

TSTG

 -55 to +125 -55 to +150 -65 to +175 ℃

Notes:1.Pulse Test with PW=300μsec, 2% Duty Cycle.

2.Mounted on a FR4 PCB, single-sided copper, mini pad.

3.Mounted on a FR4 PCB, single-sided copper, with 100cm2 copper pad area.









Schottky Diode​ SS310B Rating and Characteristic Curves:

Fig1. SS310B Forward Current Derating Curve:

SOCAY SMB Package 100V Schottky Diode SS310B SS34B SS38B 3A Average Forward Current 0



Fig2. Typical Reverse Characteristics:

SOCAY SMB Package 100V Schottky Diode SS310B SS34B SS38B 3A Average Forward Current 1





SMB Package Dimensions of Schottky Diode​ SS310B:

 (Unit:inch(mm))

SOCAY SMB Package 100V Schottky Diode SS310B SS34B SS38B 3A Average Forward Current 2







Packaging Information:

Part Number Component Package Quantity Packaging Option
SS310B SMB/DO-214AA 3000 PCS per 13" plastic Reel
    800 PCS per 7" plastic Reel










SOCAY SMB Package 100V Schottky Diode SS310B SS34B SS38B 3A Average Forward Current 3
