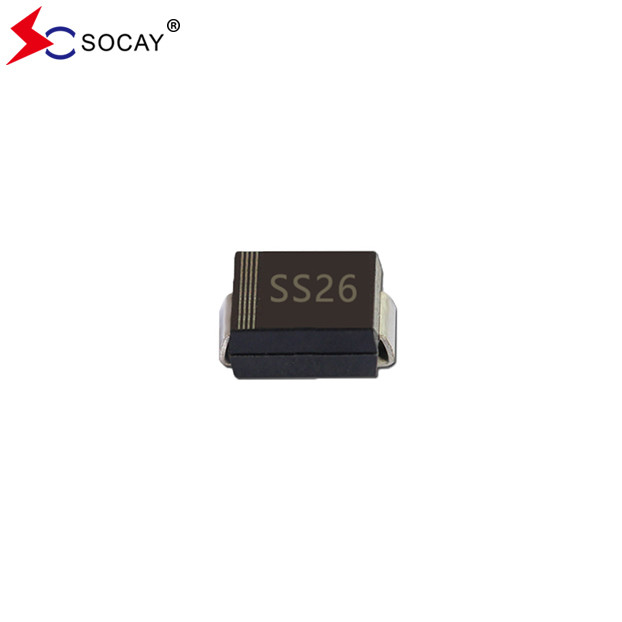

Name: SOCAY 60VRRM Schottky Diode SS26B Surface Mount Schottky Barrier Rectifiers
Brand: Shenzhen Socay Electronics Co., Ltd.
SKU: SS26B
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Schottky Diode

SS26B Package: DO-214AA(SMB)

SS26B Max. VRRM: 60V

SS26B Max. VRMS: 42V

SBD Max. VDC: 60V

RθJL: 12℃/W

SS26B IR @25℃: 0.09mA

SS26B IR @100℃: 20mA

Highlight:

Surface Mount Schottky Barrier Rectifiers

Schottky Diode SS26B

SS26B

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: REACH,RoHS,ISO

Model Number: SS26B

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

SOCAY 60VRRM Schottky Diode SS26B Surface Mount Schottky Barrier Rectifiers

Product Description

SOCAY 60VRRM Schottky Diode SS26B Surface Mount Schottky Barrier Rectifiers

Schottky Diode DATASHEET: SS22B~SS220B(SMB)_v93.1.pdf

Schottky Diode SS26B Characteristic:

Schottky Diode Plastic package has Underwriters Laboratory Flammability Classification UL94V-0.
Suitable for surface mounted applications in order to optimize board space.
SS26B Schottky Diode has low power loss, High efficiency.
Schottky Diode SS26B which VRRM is 60V has High surge capacity.
Lead free in compliance with EU RoHS 2.0.
SS26B Green molding compound as per IEC 61249 standard.

Mechanical Data of Schottky Diode SS26B:

Schottky Diode Case: DO-214AA/SMB.
SS26B Terminals: Solder plated, solderable per MIL-STD-750, Method 2026.
Approximate Weight: 0.092 grams.
SS26B Polarity: Color band denotes cathode end.
Schottky Diode SS26B Standard packaging: 12mm tape (EIA-481).

Schottky Diode SS26B Electrical and Thermal Characteristics (T_A=25℃ unless otherwise noted):

Parameter		Symbol	SS26B	Unit
Max. Repetitive Peak Reverse Voltage		VRRM	60	V
Schottky Diode Max. RMS Voltage		VRMS	42	V
Schottky Diode Max. DC Blocking Voltage		VDC	60	V
Max. Average Forward Rectified Current		IF(AV)	2	A
Peak Forward Surge Current : 8.3ms Single Half Sinewave Superimposed on Rated Load		IFSM	50	A
Schottky Diode Maximum Forward Voltage at 2A per Diode (Note 1)		VF	0.7	V
Schottky Diode Maximum DC Reverse Current at Rated DC Blocking Voltage	TJ=25℃	IR	0.09	mA
	TJ=100℃		20
Schottky Diode Typical Thermal Resistance		RθJL	12	℃/W
Operating Junction Temperature Range and Storage Temperature Range		TJ, TSTG	-55 to +150	℃

Schottky Diode SS26B Rating and Characteristic Curves:

Fig1. Typical Forward Characteristics:

SOCAY 60VRRM Schottky Diode SS26B Surface Mount Schottky Barrier Rectifiers 0

Fig2. Operating Temperature Derating Curve:

SOCAY 60VRRM Schottky Diode SS26B Surface Mount Schottky Barrier Rectifiers 1

SMB Package Dimensions of Schottky Diode SS26B:

(Unit:inch(mm))

SOCAY 60VRRM Schottky Diode SS26B Surface Mount Schottky Barrier Rectifiers 2

Packaging Information of Schottky Diode SS26B:

Part Number	Component Package	Quantity	Packaging Option
SS26B	SMB/DO-214AA	3000 PCS	per 13" plastic Reel
		800 PCS	per 7" plastic Reel
