Name: SMD Schottky Barrier Rectifiers 20~200VRRM DO-214AA SMB Package SS24B 40VRRM
Brand: Shenzhen Socay Electronics Co., Ltd.
SKU: SS24B
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Component Name: Schottky Barrier Rectifiers

Package: DO-214AA(SMB)

SS24B Max. VRRM: 40V

SS24B Max. VRMS: 28V

SBD Max. VDC: 40V

SS24B Max. IF(AV): 2A

Rectifiers IFSM: 50A

Rectifiers VF: 0.5V

Highlight:

SMB Package Schottky Barrier Rectifiers

Schottky Barrier Rectifiers SS24B

SS24B

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: REACH,RoHS,ISO

Model Number: SS24B

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

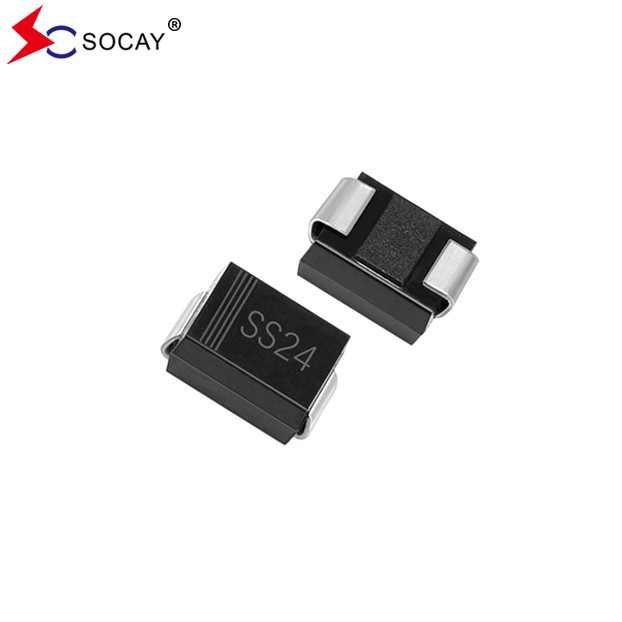

SMD Schottky Barrier Rectifiers 20~200VRRM DO-214AA SMB Package SS24B 40VRRM

Product Description

SMD Schottky Barrier Rectifiers 20~200VRRM DO-214AA(SMB) Package SS24B 40VRRM

Schottky Barrier Rectifiers DATASHEET: SS22B~SS220B(SMB)_v93.1.pdf

Schottky Barrier Rectifiers SS24B Features:

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
For surface mounted applications in order to optimize board space.
Low power loss, High efficiency.
Schottky Barrier Rectifiers SS24B has High surge capacity.
Lead free in compliance with EU RoHS 2.0.
Green molding compound as per IEC 61249 standard.

Schottky Barrier Rectifiers SS24B Mechanical Data:

Case: JEDEC DO-214AA molded plastic.
Terminals: Solder plated, solderable per MIL-STD-750, Method 2026.
Approx. Weight: 0.0032 ounces, 0.092 grams.
Polarity: Color band denotes cathode end.
Schottky Barrier Rectifiers SS24B Standard packaging: 12mm tape (EIA-481).

Schottky Barrier Rectifiers SS24B Electrical and Thermal Characteristics (T_A=25℃ unless otherwise noted):

Parameter		Symbol	SS22B	SS23B	SS24B	SS25B	SS26B	SS28B	SS210B	SS215B	SS220B	Unit
Maximum Repetitive Peak Reverse Voltage		VRRM	20	30	40	50	60	80	100	150	200	V
Maximum RMS Voltage		VRMS	14	21	28	35	42	56	70	105	140	V
Maximum DC Blocking Voltage		VDC	20	30	40	50	60	80	100	150	200	V
Maximum Average Forward Rectified Current		IF(AV)	2									A
Peak Forward Surge Current : 8.3ms Single Half Sinewave Superimposed on Rated Load		IFSM	50									A
Maximum Forward Voltage at 2A per Diode (Note 1)		VF	0.5			0.7		0.8		0.9		V
Maximum DC Reverse Current at Rated DC Blocking Voltage	TJ=25℃	IR	0.09					0.05				mA
	TJ=100℃		20					1
Typical Thermal Resistance		RθJL	12									℃/W
Operating Junction and Storage Temperature Range		TJ, TSTG	-55 to +150					-55 to +175				℃
Notes:1.Pulse Test with PW=300μsec, 1% Duty Cycle. 2.Mounted on P.C. Board with 8mm2 (0.013mm thick) copper pad areas.

Schottky Barrier Rectifiers SS24B Rating and Characteristic Curves:

Fig1. Forward Current Derating Curve:

Fig2. Typical Reverse Characteristics:

Schottky Barrier Rectifiers SS24B Dimensions / SMB/DO-214AA Package Outline (Unit:inch(mm)):

SMD Schottky Barrier Rectifiers 20~200VRRM DO-214AA SMB Package SS24B 40VRRM 2

Schottky Barrier Rectifiers SS24B Packaging Information:

Part Number	Component Package	Quantity	Packaging Option
SS22B~SS220B	SMB/DO-214AA	3000 PCS	per 13" plastic Reel
		800 PCS	per 7" plastic Reel

SMD Schottky Barrier Rectifiers 20~200VRRM DO-214AA SMB Package SS24B 40VRRM 3
