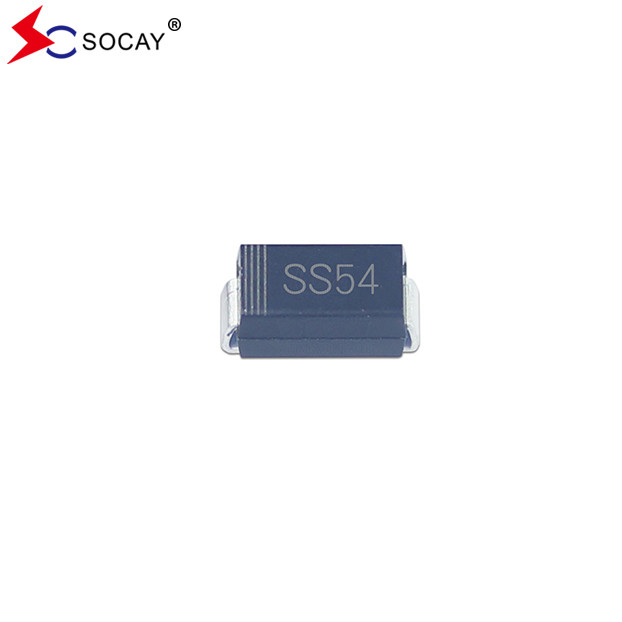

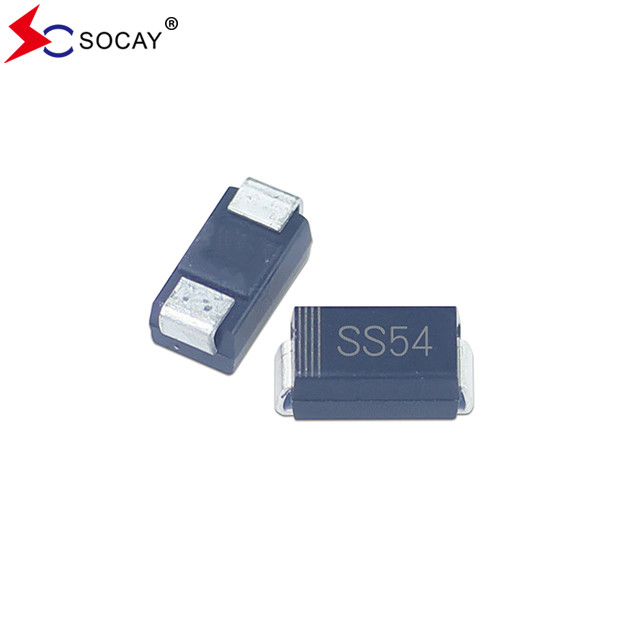

SS54A 40VRRM SBD Surface Mount Schottky Barrier Rectifiers DO-214AC SMA Package

5000PCS
MOQ
Negotiable
Price
SS54A 40VRRM SBD Surface Mount Schottky Barrier Rectifiers DO-214AC SMA Package
Features Gallery Product Description Request A Quote
Features
Specifications
Electronic Component Name: Schottky Barrier Rectifiers
Rectifiers Package: DO-214AC(SMA)
Max. VRRM: 40V
Rectifiers Max. VRMS: 28V
SBD Max. VDC: 40V
Max. Average Forward Rectified Current: 5A
Rectifiers IFSM: 150A
Rectifiers VF: 0.55V
Highlight:

SS54A Schottky Barrier Rectifiers

,

Surface Mount Schottky Barrier Rectifiers

,

SMA Package Schottky Barrier Rectifiers
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: REACH,RoHS,ISO
Model Number: SS54A
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SS54A 40VRRM SBD Surface Mount Schottky Barrier Rectifiers DO-214AC(SMA) Package​



Schottky Barrier Rectifiers DATASHEET: SS54A~SS520A(SMA)_v2307.1.pdf





Schottky Barrier Rectifiers​ SS54A Features:

  • Metal silicon junction, majority carrier conduction
  • Suitable for surface mounted applications
  • Merit: Low power loss, high efficiency
  • Merit: High forward surge current capability
  • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications.



Schottky Barrier Rectifiers​ SS54A Mechanical Data:

  • Schottky Barrier Rectifiers SS54A Case: SMA.
  • SS54A Terminals: Solderable per MIL-STD-750, Method 2026.

  • Approx. Weight: 60mg / 0.0021oz.







Schottky Barrier Rectifiers​ SS54A Max. Ratings & Thermal Characteristics:

Schottky Barrier Rectifiers​' ratings at 25℃ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load,for capacitive load, derate by 20 %.
Parameter Symbol SS54A SS56A SS510A SS515A SS520A Unit
Rectifiers Maximum Repetitive Peak Reverse Voltage VRRM 40 60 100 150 200 V
Rectifiers Maximum RMS Voltage VRMS 28 42 70 105 140 V
Rectifiers Maximum DC Blocking Voltage VDC 40 60 100 150 200 V
Maximum Average Forward Current IF(AV) 5.0 A

Rectifiers Peak Forward Surge Current,8.3ms

Single Half Sine-wave Superimposed

on Rated Load (JEDEC method)



 IFSM 150 A
Rectifiers Max Instantaneous Forward Voltage at 5 A VF 0.55 0.70 0.85 V

Maximum DC Reverse Current

at Rated DC Reverse Voltage

 Ta=25℃ IR

1.0

50

 mA
  Ta=100℃
Rectifiers Typical Junction Capacitance(1) Cj 500 300 pF
Typical Thermal Resistance(2) RθJA 60 ℃/W
Operating Junction Temperature Range TJ -55 to +150 ℃
Rectifiers Storage Temperature Range TSTG -55 to +150 ℃

Notes: 1.Measured at 1MHz and applied reverse voltage of 4 V D.C.

2. P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas.









Schottky Barrier Rectifiers​ SS54A ​Dimensions:

SS54A 40VRRM SBD Surface Mount Schottky Barrier Rectifiers DO-214AC SMA Package 0







Schottky Barrier Rectifiers​ SS54A Packaging Information:

Part Number Component Package Quantity
SS54A~SS520A DO-214AC(SMA) 5000 PCS







Schottky Barrier Rectifiers Warning:

  • SOCAY owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property.
  • SOCAY reserves the right to make changes without further notice to any products herein.
  • SOCAY makes no warranties, representations or warranties as to the fitness of its products for any particular purpose, and disclaims any liability.
  • The parameters provided in the SOCAY datasheet specification may vary from application to application, and the actual performance may vary over time. All operating parameters must be verified by the customer's technical expert before application.
  • Any and all responsibilities and liabilities are disclaimed if any item under this notice of warning is not complied with.



SS54A 40VRRM SBD Surface Mount Schottky Barrier Rectifiers DO-214AC SMA Package 1
