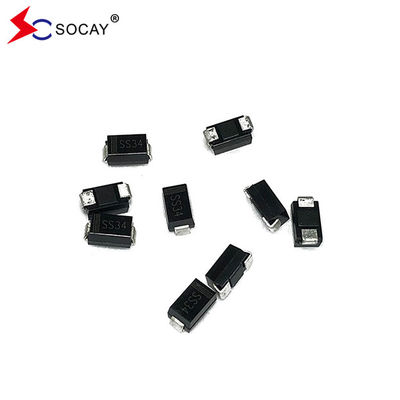

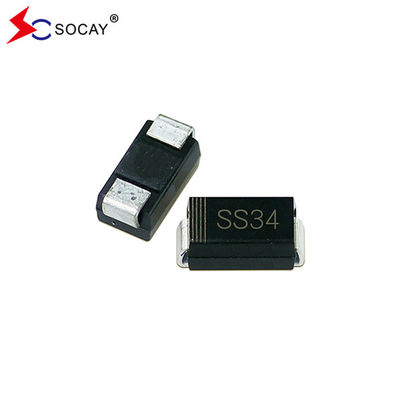

40VRRM SBD Schottky Diode SS34A 28VRMS 3A I(AV) 0.55 VF DO-214AC

5000PCS
MOQ
Negotiable
Price
40VRRM SBD Schottky Diode SS34A 28VRMS 3A I(AV) 0.55 VF DO-214AC
Features Gallery Product Description Request A Quote
Features
Specifications
SBD Name: Schottky Barrier Diode
SBD Package: DO-214AC(SMA)
SBD Max. VRRM: 40V
Diode Max. VRMS: 28V
SBD Max. VDC: 40V
Max. Average Forward Rectified Current: 3A
IFSM: 100A
VF: 0.55V
Highlight:

DO-214AC Schottky Diode

,

Schottky Diode SS34A

,

SS34A
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: REACH,RoHS,ISO
Model Number: SS34A
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

40VRRM SBD Schottky Diode SS34A 28VRMS 3A I(AV) 0.55 VF DO-214AC



SBD Schottky Diode DATASHEET: SS32A~SS320A(SMA)_v2205.1.pdf





40VRRM Schottky Diode SS34A Features:

  • Guardring for overvoltage protection
  • Very small conduction losses
  • Extremely fast switching
  • Low forward voltage drop is nice
  • For surface mounted applications
  • Solder dip 260 ℃, 40 s

  • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC



40VRRM Schottky Diode SS34A Mechanical Data:

  • Schottky Diode SS34A Case: JEDEC SMA molded plastic
  • SS34A Terminals: Solder plated, solderable per J-STD-002B and JESD22-B102D

  • Schottky Diode Polarity: Color band denotes cathode end

  • Mounting Position: Any

  • Weight: 0.07 grams



Schottky Diode SS34A Main Ratings and Features:

Schottky Diode IF(AV)

3.0A
Schottky Diode VRRM

20 V to 200 V
SS34A IFSM

100A
Schottky Diode VF

0.45V, 0.55V, 0.70V, 0.85V,0.95V
Tj max. 125℃









Schottky Diode SS34A Max. Ratings & Thermal Characteristics:

Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
Parameter Symbol SS32A SS33A SS34A SS35A SS36A SS38A SS310A SS315A SS320A Unit

Maximum repetitive peak

reverse voltage

 VRRM 20 30 40 50 60 80 100 150 200 V
Maximum RMS voltage VRMS 14 21 28 35 42 56 70 105 140 V

Maximum DC

blocking voltage

 VDC 20 30 40 50 60 80 100 150 200 V

Maximum average forward

rectified current



 I(AV) 3.0 A

Peak forward surge current

8.3ms single half sine-wave

superimposed on rated load

(JEDEC Method)



IFSM

 100 A

Maximum instantaneous

forward voltage at 3.0A

 VF 0.45 0.55 0.70 0.85 0.95 V

Maximum DC

reverse current at rated DC blocking voltage

 TA=25℃ IR 0.5 0.2 mA
  TA=100℃   20 10 2
Typical junction capacitance① CJ 500.0 300.0 pF
Typical thermal resistance② RθJA 88.0 ℃/W
Operating junction temperature range TJ -65 to +125 -65 to +150 ℃
Storage temperature range TSTG -65 to +150 ℃

Note: ① Measured at 1MHz and applied reverse voltage of 4.0V D.C.

② Mounted on 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas.









Schottky Diode SS34A  ​Dimensions:

40VRRM SBD Schottky Diode SS34A 28VRMS 3A I(AV) 0.55 VF DO-214AC 0







Schottky Diode SS34A Notice:

  • Schottky Diode SS34A is intended for use in general electronics applications.
  • Schottky Diode SS34A should be worked less than the ratings; if exceeded, it may cause permanent damage. so ensure safety.
  • The absolute maximum ratings of Schottky Diode SS34A are rated values and must not be exceeded during operation. The following are the general derating methods you design a circuit with a device.





40VRRM SBD Schottky Diode SS34A 28VRMS 3A I(AV) 0.55 VF DO-214AC 1
