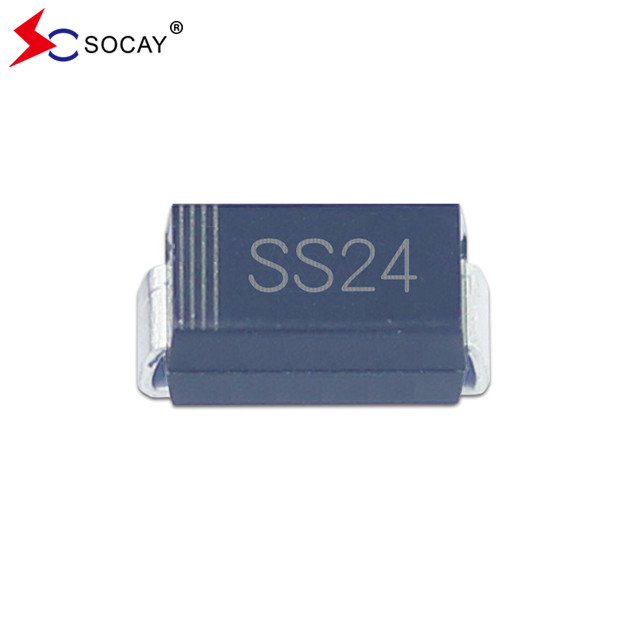

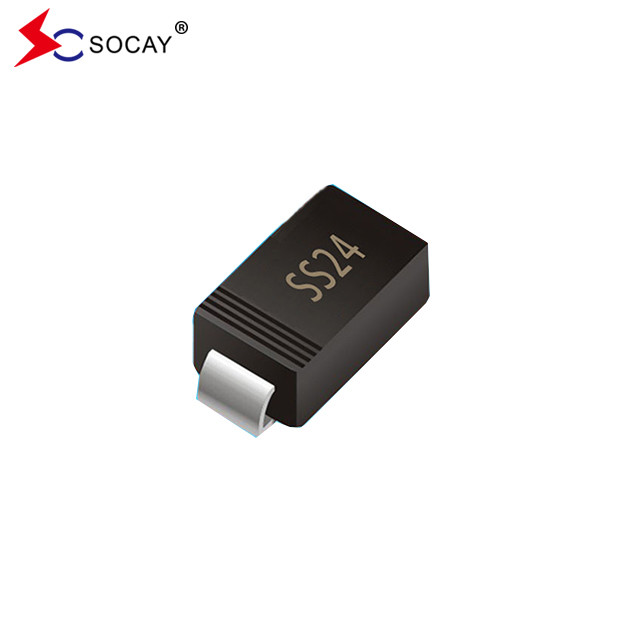

SMA Package Schottky Rectifier SS24A Schottky Barrier Diode VRRM 40V 2A DO-214AC

SMA Package Schottky Rectifier SS24A Schottky Barrier Diode VRRM 40V 2A Forward Rectified Current ​

SBD​ DATASHEET: SS22A~SS220A(SMA)_v2211.1.pdf

Schottky Rectifier​ SS24A Distinguishing Feature:

• Low profile package for more application.

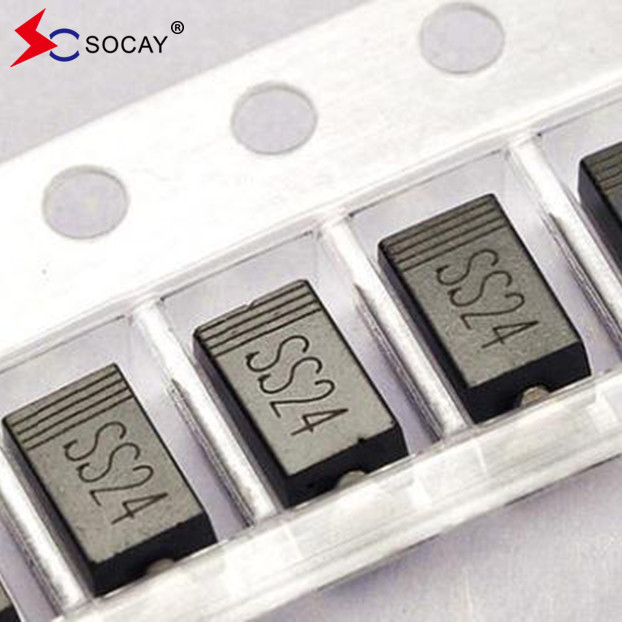

• Suitable for automated placement
• Very quick reverse recovery time

• High temperature soldering: 260 °C/10 seconds at terminals

• Not high power losses, not low efficiency
• Not high forward voltage drop
• Not low surge capability
• Not low temperature soldering :

Schottky Rectifier SS24A Mechanical Data:

• Schottky Rectifier SS24A Case: JEDEC SMA molded plastic
• SS24A Terminals: Solder plated, solderable per J-STD-002B and JESD22-B102D

• Schottky Rectifier Polarity: Laser band denotes cathode end

Schottky Rectifier SS24A Main Ratings and Features:

Schottky Rectifier SS24A Max. Ratings & Thermal Characteristics:

SBD SS24A Electrical Characteristics (T_A = 25℃ unless otherwise noted):

Schottky Rectifier SS24A  ​Dimensions:

Schottky Rectifier SS24A Notice:

• SBD SS24A is intended for use in general electronics applications.
• SS24A should be worked less than the ratings; if exceeded, it may cause permanent damage,or introduce latent failure mechanisms. Ensure safety.
• The absolute maximum ratings are rated values and must not be exceeded during operation. The following are the general derating methods you design a circuit with a device.

Maximum average forward rectified current : The worst case current be no greater than 80% . It is very important.

Peak forward surge current 8.3ms single half sine-wave superimposed on rated load : This rating specifies the non-repetitive peak current. This is only applied for an abnormal operation, which the general during the lifespan of the device.

Operating junction temperature : Derate this rating when using a device in order to ensure high reliability. We recommend that the device should be used at a T_J of below 100℃.
