Name: SMD Package 60V Schottky Rectifier SS16A Schottky Diode DO-214AC
Brand: SOCAY
SKU: SS16A
Rating: 4.8 (155 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Procuct Component Name: Schottky Diode

Package: DO-214AC(SMA)

Max. VRRM: 60V

Max. VRMS: 42V

Max. VDC: 60V

Max. IF(AV): 1A

SS16A IFSM: 40A

Dv/dt (rated VR): 10000V/μs

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: REACH,RoHS,ISO

Model Number: SS16A

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

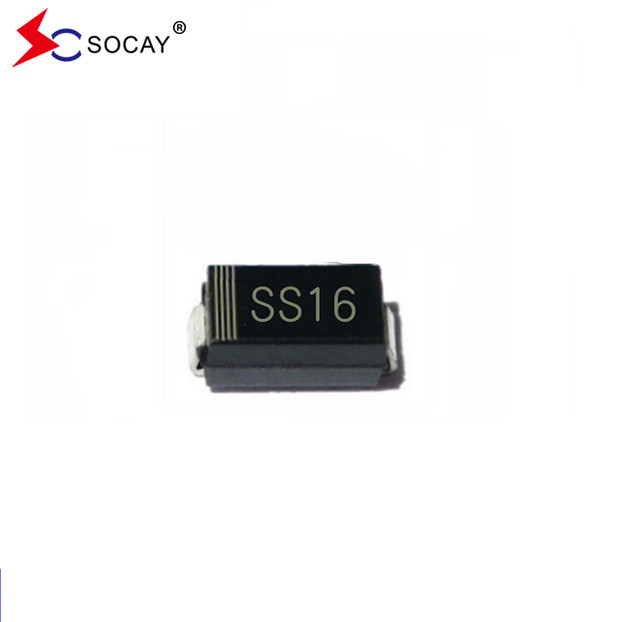

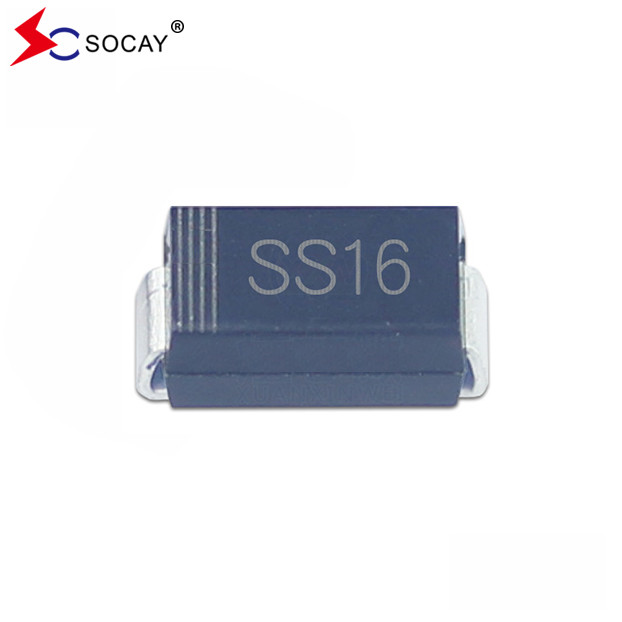

SMD Package 60V Schottky Rectifier SS16A Schottky Diode DO-214AC

Product Description

SMD Package 60V Schottky Rectifier SS16A Schottky Diode DO-214AC

Schottky Barrier Diode DATASHEET: SS12A~SS120A(SMA)_v2211.1.pdf

SS16A Schottky Diode Properties:

Schottky Rectifier SS16A, it has low profile package
You know that, it is ideal for automated placement
Besides, its reverse recovery time is ultrafast
Schottky Rectifier SS16A has low power losses, and high efficiency
Not only low forward voltage drop
But also surge capability is high
T_^LHigh temperature soldering: 260℃/10 seconds at terminals
This Schottky Rectifier SS16A Component is in accordance to RoHS 2002/95/1 and WEEE 2002/96/EC

SS16A Schottky Diode Physical Parameters:

Schottky Rectifier SS16A Case: JEDEC DO-214AC molded plastic
The terminals: Solder plated, solderable per J-STD-002B and JESD22-B102D
Its Polarity: Laser band denotes cathode end

SS16A Schottky Diode Major Ratings and Properties:

Schottky Diode I_F(AV)	1.0A
Schottky Diode V_RRM	20 V to 200 V
Peak forward surge current I_FSM	40A
SBD V_F	0.50V, 0.55V, 0.70V, 0.85V,0.95V
SS16A T_{j max.}	125℃

Schottky Diode Maximum Ratings & Thermal Data (T_A = 25℃ unless otherwise noted):

Schottky Items	Symbol	SS12A	SS13A	SS14A	SS15A	SS16A	SS18A	SS110A	SS115A	SS120A	Unit
Schottky Max. repetitive peak reverse voltage	Schottky V_RRM	20	30	40	50	60	80	100	150	200	V
Schottky Diode Max. RMS voltage	Schottky V_RMS	14	21	28	35	42	56	70	105	140	V
Max. DC blocking voltage	Schottky V_DC	20	30	40	50	60	80	100	150	200	V
Schottky Max. average forward rectified current	I_F_(AV)	1									A
Schottky Diode Peak forward surge current	Schottky I_FSM	40									A
Schottky Diode Voltage rate of change (rated V_R)	dv/dt	10000									V/μs
Schottky Thermal resistance ⁽¹⁾	R_θJL	35									℃/W
Schottky Diode T_J,T_STG	T_J,T_STG	–65 to +125									℃
Note 1: Schottky is Mounted on P.C.B. with 0.2 x 0.2” (5.0 x 5.0mm) copper pad areas.

Schottky Diode Electrical Data (T_A = 25℃ unless otherwise noted):

Schottky Diode Items	Schottky Conditions		Symbol	SS12A	SS13A~ SS14A	SS15A~ SS16A	SS18A~ SS110A	SS115A~ SS120A	Unit
Instantaneous forward voltage	Schottky IF=1.0A(2)		VF	0.50	0.55	0.70	0.85	0.95	V
Schottky Diode Ir	VR=VDC	Tj=25℃	IR	0.5					mA
		Tj=100℃		5.0
Note 2: Schottky Diode Pulse test:300μs pulse width,1% duty cycle.

SS16A Schottky Diode Dimensions:

SMD Package 60V Schottky Rectifier SS16A Schottky Diode DO-214AC 0

SS16A Schottky Diode Notes:

Product SS16A Schottky Diode is intended for use in general electronics applications.
Product SS16A Schottky Diode should be worked less than the ratings; if the SS16A is exceeded, it may cause permanent damage,or introduce latent failure mechanisms.
The absolute maximum ratings of the SS16A are rated values and must not be exceeded during operation. The following are the general derating methods you design a circuit with a device.

I_F(AV) : We advice that the worst case current of the product be no greater than 80% .

I_FSM : This rating of SS16A specifies the non-repetitive peak current. This is only applied for an abnormal operation, which the general during the lifespan of the device.

T_J : Derate this rating of SS16A Schottky Diode when using a device in order to ensure high reliability. We advice that the device should be used at a T_J of 100℃ min.

SMD Package 60V Schottky Rectifier SS16A Schottky Diode DO-214AC 1
