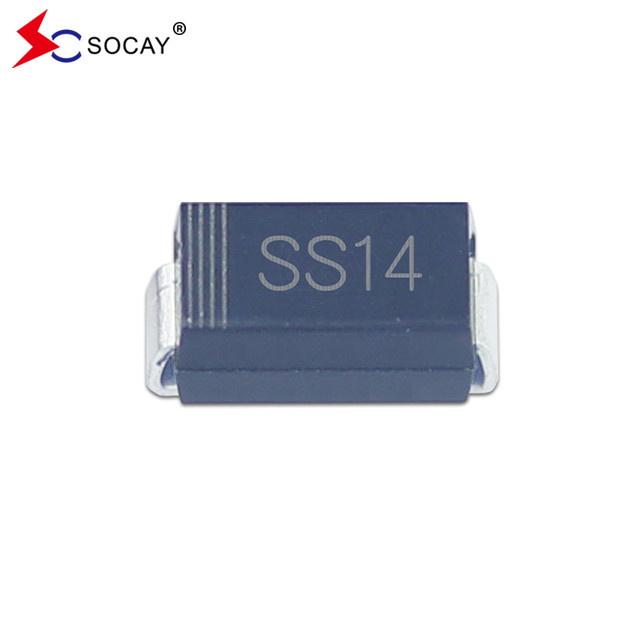

SBD SS14A Characteristics:

• SBD is a low profile package
• It is deal for automated placement
• It owns ultrafast reverse recovery time
• Very low power losses and very high efficiency
• SBD SS14A has low forward voltage drop
• Excellent High surge capability
• Excellent High temperature soldering:

• 260℃/10 seconds at terminals

  Component in accordance to RoHS 2002/95/1 and WEEE 2002/96/EC

SBD SS14A Mechanical Data:

• SS14A Case: JEDEC DO-214AC molded plastic
• The Product's Terminals: Solder plated, solderable per J-STD-002B and JESD22-B102D

• SS14A's Polarity: Laser band denotes cathode end

SBD SS14A Main Ratings and Features:

SBD SS14A Maximum Ratings & Thermal Characteristics (T_A = 25℃ unless otherwise noted):

SBD SS14A Electrical Characteristics (T_A = 25℃ unless otherwise noted):

SBD SS14A  ​Dimensions:

SBD SS14A Notice:

• SBD SS14A is intended for use in general electronics applications.
• SS14A should be worked less than the ratings; if it is exceeded, it may cause permanent damage,or introduce latent failure mechanisms. So, be careful
• The absolute maximum ratings are rated values and must not be exceeded during operation. The following are the general derating methods you design a circuit with a device.

I_F(AV) : The worst case current be no greater than 80% . It is very important.

I_FSM : This rating specifies the non-repetitive peak current. This is only applied for an abnormal operation, which the general during the lifespan of the device.

T_J : Derate this rating when using a device in order to ensure high reliability. We recommend that the device should be used at a T_J of below 100℃.
