Name: 3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection
Brand: SOCAY
SKU: SE03D3D01GW
Rating: 4.8 (101 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: ESD Arrays

Product Package: SOD-323

Vrwm (Max.): 3.3V

Vbr (Min.): 4.0V

Ir (Max.): 0.1μA

It: 1mA

Vc (Max.) (Ipp=1A): 7.8V

Vc (Max.) (Ipp=17A): 19.5V

Cj (Typ.): 0.8pF

Polarity: Bi-directional

Highlight:

3.3V ESD Array

TVS ESD Array

3.3V TVS Diode For ESD Protection

Basic Infomation

Place of Origin: Shenzhen Guangdong China

Brand Name: SOCAY

Certification: REACH RoHS ISO

Model Number: SE03D3D01GW

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

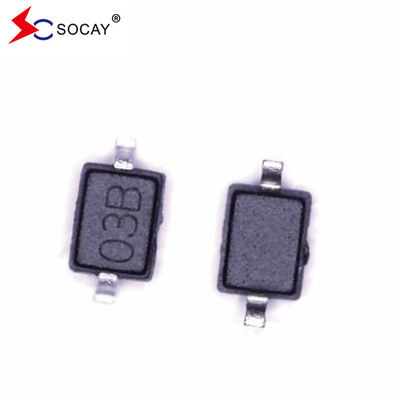

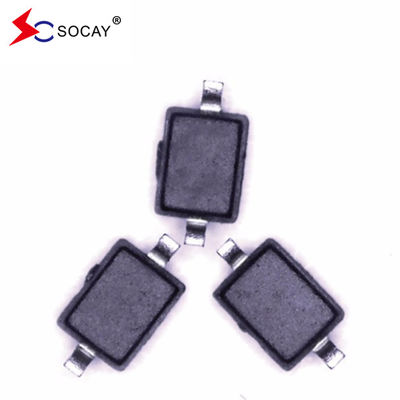

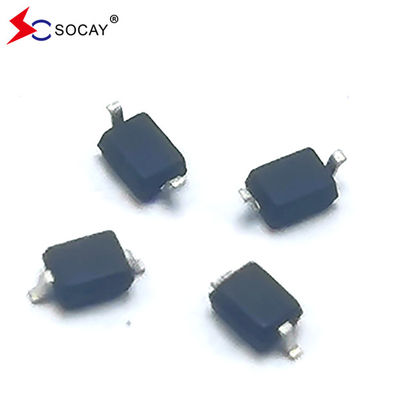

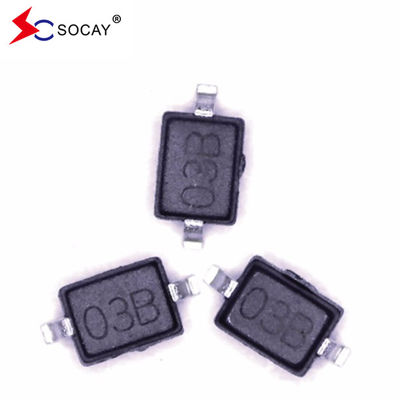

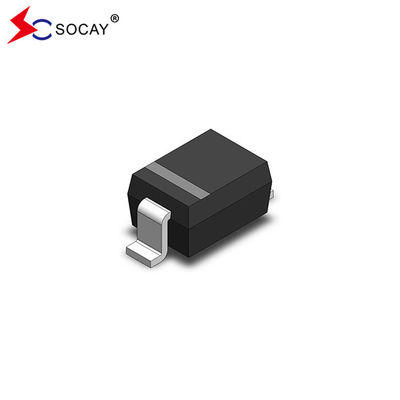

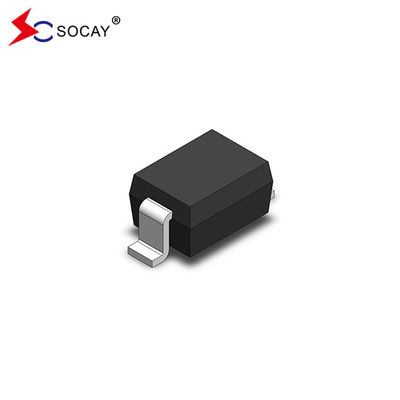

Gallery

3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection

Product Description

3.3V ESD Protection Diode SE03D3D01GW Transient Voltage Suppressors For ESD Protection

ESD Protection Diode DATASHEET: SE03D3D01GW_v2204.1.pdf

ESD Protection Diode Features:

IEC 61000-4-2 (ESD) ±25kV (air),±25kV (contact)
IEC61000-4-4 (EFT) 40A (5/50ηs)
Protect one I/O line (bidirectional)
Low clamping voltage
Working voltage: 3.3V
Low leakage current
Response time is ＜1ns

ESD Protection Diode Applications:

Cell Phone Handsets and Accessories
Microprocessor based Equipment
Personal Digital Assistants (PDA's)
Notebooks, Desktops, and Servers
Portable Instrumentation
Peripherals
USB Interface

ESD Protection Diode Mechanical Characteristics:

SOD-323 Package
Flammability Rating: UL 94V-0
Packaging: 3000 PCS / Tape & Reel
High Temperature Soldering Guaranted: 260℃/10s
Reel Size: 7 inch
Material: Halogen Free

ESD Protection Diode Pin Configuration:

3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection 0

ESD Protection Diode Absolute Maximum Ratings (T_A=25℃ unless otherwise specified):

Parameter	Symbol	Value	Units
ESD per IEC 61000−4−2 (Air) ESD per IEC 61000−4−2 (Contact)	VESD	±25 ±25	KV
Operating Temperature Range	TJ	−55 ~ +150	℃
Storage Temperature Range	TSTG	−55 ~ +150	℃
Lead Solering Temperature	TL	260	℃

ESD Protection Diode Electrical Characteristics (TA = 25℃ unless otherwise specified):

Part Number

VRWM

(V)

(Max)

(V)

(Min)

(mA)

VC @ 1A

(V)

(Max)

VC (V)

(μA)

(Max)

(pF)

(Typ)

(Max)

(@A)

SE03D3D01GW

3.3

4.0

7.8

19.5

0.1

0.8

Electrical Characteristics Curves:
Fig1. Pulse Waveform
3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection 1

Fig2. Non-Repetitive Peak Pulse Power vs. Pulse Time

Fig3. Power Derating Curve
3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection 3

Fig4. Junction Capacitance vs. Reverse Voltage

SOD-323 Package Outline & Dimensions:

Symbol	Dimensions in Millimeters
	Min.	Max.
A	--	1.00
A1	0.00	0.10
A2	0.80	0.90
b	0.25	0.35
c	0.08	0.15
D	1.20	1.40
E	1.60	1.80
E1	2.50	2.70
e	1.80	2.04
L	0.475 REF
L1	0.25	0.40
θ	0°	8°

3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection 6
