Name: MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage
Brand: SOCAY
SKU: SE02P8M14HA
Rating: 5 (116 reviews)

MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage

3000PCS

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Component Name: ESD Arrays

Component Package: SE02P8M14HA

Vrwm (Max.): 2.8V

Ir (Typ.): 0.1V

Ir (Max.): 1.0μA

Vt1 (Typ.): 3.7V

Vh: 3.0~4.0V

Vc (Max.) (Ipp=2A): 5.0V

Vc (Max.) (Ipp=10A): 8.0V

Vc (Max.) (Ipp=24A): 14.0V

Cj (Typ.): 1.5pF

Cj (Max.): 2.5pF

Highlight:

MSOP-8 ESD Array

ESD Array SE02P8M14HA

MSOP-8 ESD Surge Protection

Basic Infomation

Place of Origin: Shenzhen Guangdong China

Brand Name: SOCAY

Certification: REACH RoHS ISO

Model Number: SE02P8M14HA

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

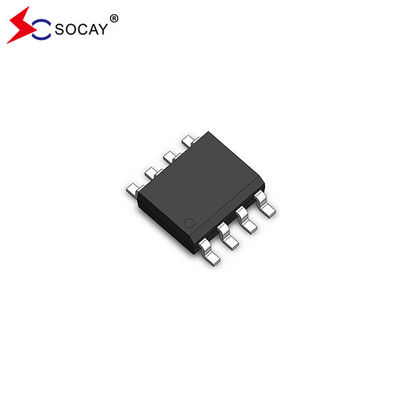

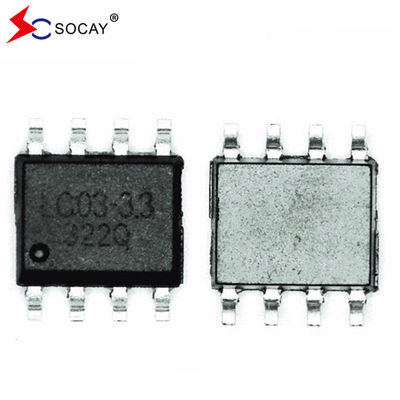

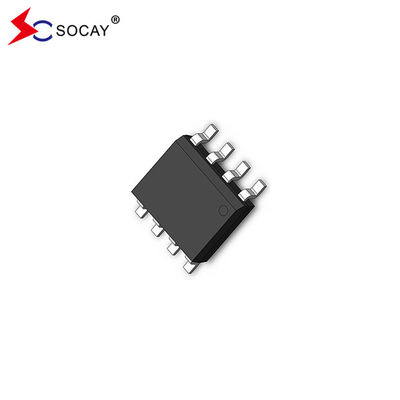

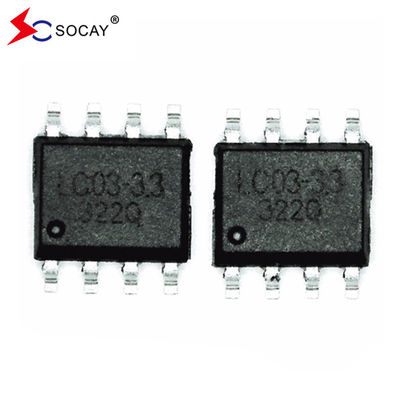

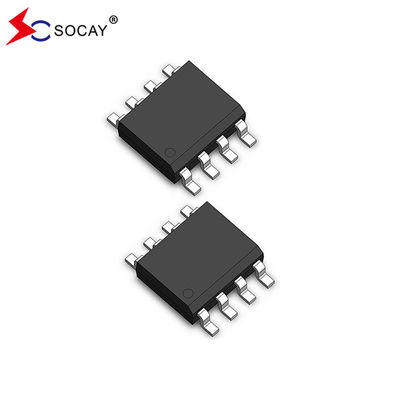

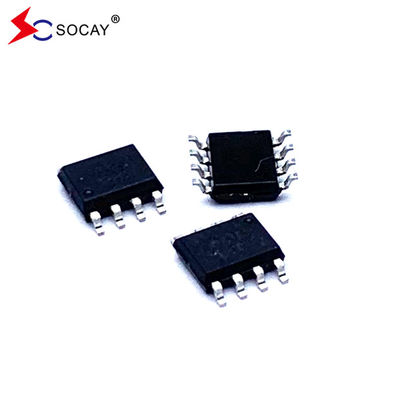

MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage

Product Description

MSOP-8 Package ESD Arrays SE02P8M14HA Ultra-Low Capacitance 1.5pF @ 3.0V (Typical) ESD Surge Protection

ESD Arrays DATASHEET: SE02P8M14HA_v2207.1.pdf

ESD Arrays Features:

Package optimized for high-speed lines
Low capacitance: 1.5pF @ 3.0V (Typical)
Low leakage current: 0.1uA @ V_RWM (Typical)
Low operating and clamping voltage

ESD Arrays Applications:

10/100M Ethernet Ports
WAN/LAN Equipment
Desktops, Servers and Notebooks
Cellular Phones

ESD Arrays Mechanical Characteristics:

MSOP-8 package
Flammability Rating: UL 94V-0
Marking: Part number
Quantity Per Reel:3,000 pcs
Reel size: 13 inch

ESD Arrays Functional Diagram:

MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage 0

ESD Arrays Absolute Maximum Ratings (T_A=25℃ unless otherwise specified):

Symbol	Parameter	Value	Units
VESD	ESD per IEC 61000-4-2(Air) ESD per IEC 61000-4-2 (Contact)	±30 ±30	KV
TOPT	Operating Temperature	-55to+125	℃
TSTG	Storage Temperature	-55to+150	℃
TLST	Lead Soldering Temperature	260(10sec.)	℃

I-V Curve Characteristics:
MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage 1

Symbol	Parameter
VRWM	Nominal Reverse Working Voltage
IR	Reverse Leakage Current @ VRWM
Vt1	Trigger Voltage
It1	Trigger Current @ Vt1
Vh	Holding Voltage
Ih	Holding Current @ Vh
VC	Clamping Voltage @ IPP
IPP	Maximum Peak Pulse Current
VBR	Breakdown Voltage @ IT
CJ	Parasitic Capacitance

Electrical Characteristics (TA = 25℃ unless otherwise specified):

Symbol	Test Condition	Minimum	Typical	Maximum	Unit
V_RWM	--	--	--	2.8	V
I_R	V_RWM=2.8V, T=25℃	--	0.1	1.0	μA
V_t1	I_t1=100μA	3.0	3.7	4.5	V
V_h	I_h=10mA	3.0	--	4.0	V
V_C	I_PP=2A, tp=8/20μs (Each Line)	--	--	5.0	V
V_C	I_PP=10A, tp=8/20μs (Each Line)	--	--	8.0	V
V_C	I_PP=24A, tp=8/20μs (Each Line)	--	--	14.0	V
C_J	V_R=3.0V, f=1MHz (Each Line)	--	1.5	2.5	pF

ESD Arrays Characteristic Curves:
Fig1. 8/20μs Pulse Waveform Fig2. Clamping Voltage V_C vs. Current I_PP

Fig3. ESD Clamping of I/O to GND

(+8kV Contact per IEC 61000-4-2) Fig4. Normalized Capacitance vs. Voltage

MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage 4

MSOP-8 Package Outline & Dimensions:

Symbol	Millimeters		Inches
	Minimum	Maximum	Minimum	Maximum
A	4.800	5.000	0.189	0.196
B	3.800	4.000	0.150	0.157
C	1.350	1.750	0.054	0.068
D	0.350	0.490	0.014	0.019
F	0.400	1.250	0.016	0.049
G	1.27 BSC.		0.05 BSC.
J	0.180	0.250	0.007	0.009
K	0.100	0.250	0.004	0.008
P	5.800	6.200	0.229	0.244
R	0.250	0.500	0.010	0.019

MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage 7
